    ISO, SGS, ROSH 24,48,72,96 fibers Horizontal Fiber Optic Splice Closure Patch Panel for Aerial -hanger, Wall-mounting


    Horizontal Fiber Optic Splice Closure Patch Panel for Aerial -hanger, Wall-mounting

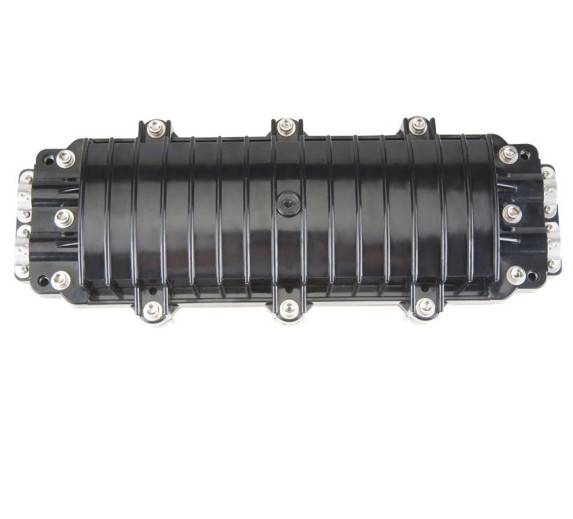

    Horizontal Splice Closure

    It provides with 4 fiber cable in-out round ports and the cable diameter is from Ф7-Ф16. It is made of high-quality ABS or PC plastic and with the mechanical seal structure filled with the seal material.

    Specification:
    Dimension (cm): 46.5 X 18.8 X 12
    Weight (kg): 2.7
    Cable diameter(mm): Ф7-Ф16
    Cable entry ports: 2 in & 2 out
    Max. Capacity: 96


    TypeDimension(mm)Cable Diameter(mm)Capacity of splice trayCable PortsPorts Max. Capacity(cores)Sealing Structure
    FOB(04)-1435*190*8510-1724(Single Fiber)496 (Single Fiber)Sticky Cincture
    FOB(04)-2435*190*12010-2224(Single Fiber)4168 (Single Fiber)Sticky Cincture
    FOB(04)-3435*190*12010-2224(Single Fiber)4192 (Single Fiber)Sticky Cincture
    FOB(04)-5A435*190*8010-1724(Single Fiber)496 (Single Fiber)Sticky Cincture
    FOB(04)-5B350*145*9010-2224(Single Fiber)448 (Single Fiber)Silicon Gum Material
    FOB(04)-5C200*220*4210-1224(Single Fiber)448 (Single Fiber)Silicon Gum Material
    FOB(04)-6435*140*7510-12.524(Single Fiber)248 (Single Fiber)Sticky Cincture
    FOB(04)-7435*190*17010-2224(Single Fiber)8288 (Single Fiber)Sticky Cincture
    FOB(04)-8420*150*11010-2324(Single Fiber)696 (Single Fiber)Sticky Cincture

    Application

    1.Suitable for the straight line and branch line connections of optical cables

    2.aerial closures system is designed for free-breathing aerial application.

    3.aerial closures are applied to non-pressurized maintenance for up to 200 pairs aerial cables.

    4.aerial closures are applicable both for straight as well as branch joints.
