FC,LC,SC 12 cores singlemode G652D bundle fiber optic pigtail,yellow cable,0.9mm inner cable

Ask Lasest Price
Brand Name :	CY COM
Certification :	ISO9001:2015 , RoHS
Delivery Time :	3-15 days
Payment Terms :	L/C,T/T,Western Union payments for offline orders.
Supply Ability :	1 million connector / month
Model Number :	Fanout pigtail
Price :	usd6.5-12.5/pc

Add to Cart

Product Details
Company Profile

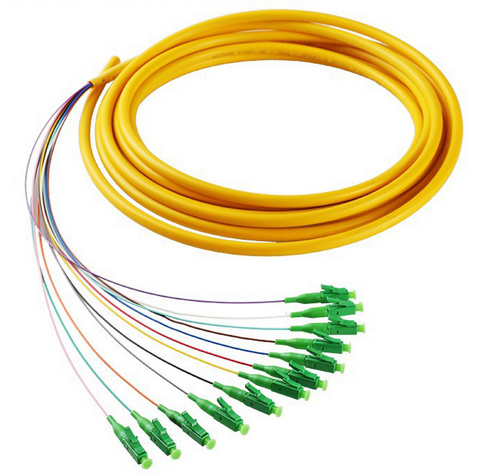

FC,LC,SC 12 cores singlemode G652D bundle fiber optic pigtail,yellow cable,0.9mm inner cable

12 cores singlemode G652D bundle fiber optic pigtail,yellow cable,0.9mm inner cable

Buddle multi-fiber pigtail

Fiber pigtail is a short optical fiber permanently attached to a source, detector, or other fiber optic device at one end and an optical connector at the other.

Features:
4, 6, 8, 12, 24, 48 fibers optional
With a fan out kit at the junction of fibers
The fiber is flat type.
Applicable connector: FC, SC, ST, LC…
Cable material: PVC, OM1, OM2 or OM3 optional
Single mode or multi mode
Cable size: Φ 0.9mm, Φ2.0mm, Φ3.0mm

Application:

1,FTTH , CATV, LAN, MAN, WAN, Test &Measuremen

2,Video transmission , Data transmission

3,Active Device Termination

4,Premise Installations

5,Telecommunication and Data processing Networks

6, Industrial, medical & military

7,Systems Integration for Long Haul, Metro and Access Network

Specification:

Parameter	Unit	Ribbon multi-fiber connector
		SM
		PC	UPC	APC
Insertion loss (typical)	dB	≤0.3	≤0.2	≤0.3
Return loss	dB	≥45	≥50	≥60
Operating wavelength	nm	1310, 1510
Exchangeability	dB	≤0.2
Vibration	dB	≤0.2
Operating temperature	℃	-40~75
Storage temperature	℃	-45~85
Cord diameter	mm	φ3.0, φ2.0, φ0.9
Fiber count	F	4, 6, 8, 12, 24, … fibers
Applicable connector		FC, SC, ST, MU, LC
