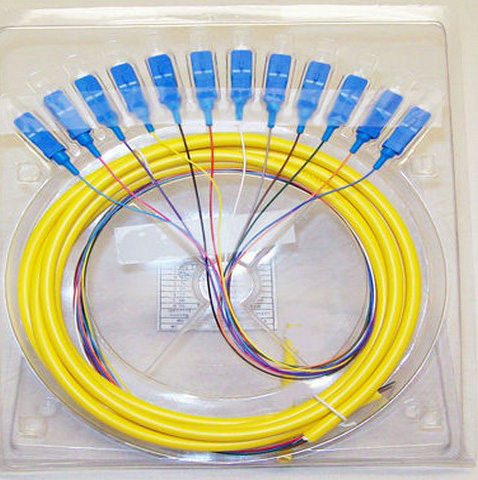

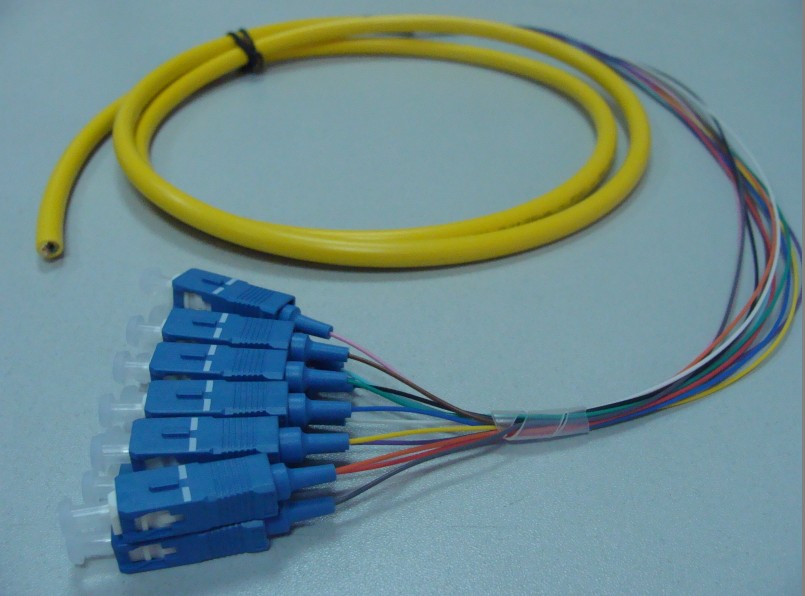

1. Descriptions:

Bundle series, only one end connected to the connector, and the other end is the broken ends of a single fiber, optical fiber core with others through the welding phase Even, and often appear in the terminal box, used to connect optical fiber cable and terminal equipment.
The pigtail is divided into tail multimode fiber and single mode fiber. Multimode fiber tail is orange, wavelength of 850 nm, transmission distance is 500 m , used for short distance interconnection . Single-mode pigtail is yellow, there are two kinds of wavelength, 1310 nm and 1550 nm, transmission distance 10 km and 40 km respectively.

2. Features:

• Low insertion loss,high return loss;
• High credibility and stability;
• Fiber cores: 4, 6, 8, 12, 24, 48……
• Joint Specification: FC, SC, ST, LC;
• Cable material: PVC, OM1, OM2 or Om3 can be chosen
• In Complying with customer's request, we could design and produce pigtails in all kinds of specifications and models.

3. Applications:

• Telecommunication network;
• Computer LAN;
• Cable television network;
• Connection of optical cable and light receiver.

4. Materials

• Dust caps: LDPE, transparent (RoHS)
• Plug housing: PBT, UPC/blue, APC/green, MM/beige (RoHS)
• Inner frame: PBT, white (RoHS)
• Ferrule: Zirconium oxide ceramic material, white (RoHS)
• Ferrule’s handle: Copper (C3602), Nickel age (RoHS)
• Mechanical spring: Stainless steel (RoHS)
• Locating snap ring: Copper alloy (HPD59-1), nickel age (RoHS)
• Snap ring: Aluminum alloy 6063 (RoHS)
• Ring: Copper alloy (HPD62), nickel age (RoHS)
• Boot: Nylon or PBT, UPC/Blue, APC/Green, MM/Beige
• Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNR, etc.

5.Specification:

6. Order information:

• Fiber cores: 1, 4, 8, 12, 16... cores
• Diameter:0.9, 2.0, 3.0mm
• Length:1m, 2m, 3m to 120m
• Fiber: SM/OM1/OM2/OM3/OM4
• Material of jacket: PVC/LSZH/OFNR
• Connector: FC, SC, ST, LC, MU, MTJR, MPO, E2000
