1.10/100M Singlemode Single Fiber
2.UTP Connector: RJ-45,
3.Fiber Connector: SC, 100Mbps
CY01/02 Series

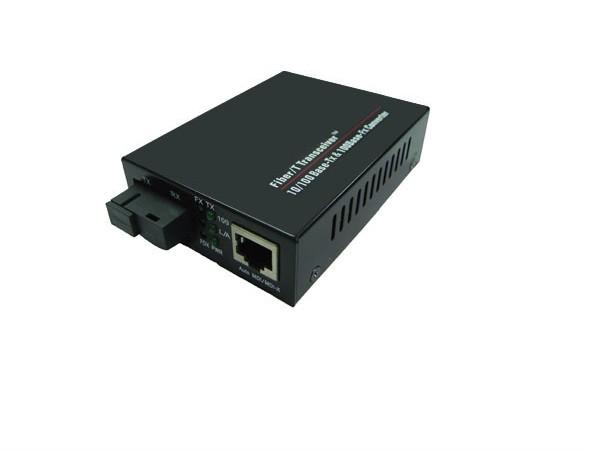

10/100M Singlemode Single Fiber Media Converter.
10/100M Singlemode Single Fiber Media Converter can convert
Optical-Electric Ethernet signals between 10/100M UTP interface
(TX) and 100M optical fiber interface (FX). It could extend
traditional 10/100M Fast Ethernet to the distance of 90km through
single optical fiber link. It possesses stable performance and good
quality by adopting latest IC from USA and Taiwan. It must be used
in couples, because the transmitted optical differs from the
receive optical in wavelength. 6 Group LED indicated lights could
fully monitor the working conditions of Converters. It is easy for
users to observe network operation.
Main features
**The transmission of a channel optical signals can be completed by
single fiber. It has doubled in quantity of fiber data transmission
compared with twin fiber type.
**Auto negotiation function allows UTP port to auto select 10M or
100M and Full Duplex or Half Duplex
**The UTP port supports MDI/MDI-X auto crossover.
**Supporting 1600 bytes packet for management.
**Internal circuit of prevented thunder could greatly reduce damage
of converters caused by thunderbolt induction.
**Indicator function of link fault (LFP): When optical fiber is at
fault, the converter could stop all the link.
**Converter working mode could be chosen: Store and forward switch
mode, Modified cut-through switch mode, or Converter mode.
Technical Specifications
**Operating standards:IEEE802.3u, 10/100Base-TX and 100Base-FX;
**MAC addresses table: 1K
**Data buffer: 128K.
**Connectors: UTP Connector: RJ-45, 10/100Mbps; Fiber Connector:
SC, 100Mbps
**Cable:
UTP: Cat. 5 UTP cable (the max distance up to100m)
Fiber ( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max
distance up to 90km)
**Flow Control
Full Duplex: IEEE802.3x
Half Duplex: back pressure
Fiber Optic Information
Type | connector | Max distance | Wavelength | TX power | Sensitivity | Link Budget |
CY01/02-20 | SC | 20km | 1310/1550nm | -14~-6dBm | -32dBm | 18dBm |
CY01/02-40 | SC | 40km | 1310/1550nm | -8/-9~-3dBm | -35dBm | 27/26dBm |
CY01/02-60 | SC | 60km | 1310/1550nm | -5/-7~0dBm | -37dBm | 32/30dBm |
CY01/02-80 | SC | 80km | 1310/1550nm | -3/-5~2dBm | -37dBm | 34/32dBm |
Order Information
Model | Product description |
CY01/02 -xx | 10/100M Singlemode Single Fiber Converters must be used and ordered
in couples. One set of CY01 must be connected with another set of
CY02 for using. CY01 transmitted optical wavelength 1310nm, receive
optical wavelength 1550nm; CY02 transmitted optical wavelength
1550nm, receive optical wavelength 1310nm. The max distance of
fiber is up to 20, 40, 60, 80 km. XX is the amount of distance. |
Application:
1.Apply to ready to rise to 10M extended enterprise network
bandwidth 100M
2. Apply to images, voice and other multimedia data on an
integrated transport network point
3. Applies to the computer signal transmission in need of the
occasion widely used for computer data transmission network to meet
a variety of business needs
4. Apply to the campus broadband network
