    Return Loss>45dB 1 × 8 1310 / 1550nm FC, SC, ST, LC, AND, MU Fiber Optic Splitter without connector

    Ask Lasest Price
    Brand Name : CY
    Delivery Time : 2-5 working days
    Payment Terms : T/T, Western Union, PayPal, L/C
    Certification : ISO9001:2008, SGS, ROSH
    • Product Details
    • Company Profile

    Return Loss>45dB 1 × 8 1310 / 1550nm FC, SC, ST, LC, AND, MU Fiber Optic Splitter without connector

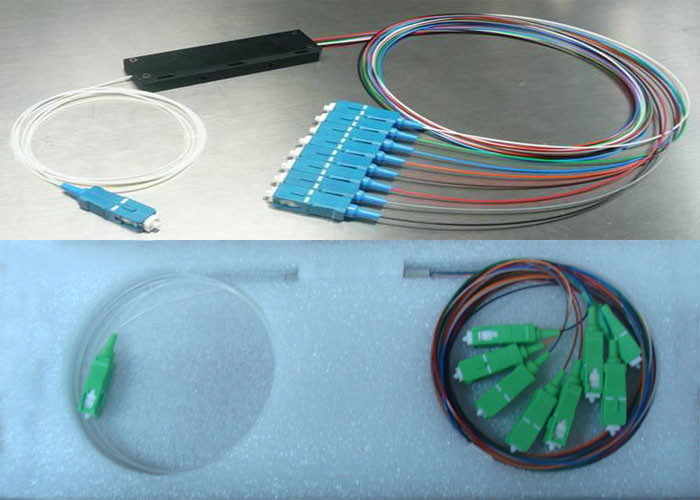

    1×8 Fiber Optic Splitter

    Steel tube package, 1310/1550nm, without connector, 0.9mm cable

    FBT SPLITTER:
    1. FBT Fiber Optic Splitter
    2. PC, UPC, APC polishing
    3. FC, SC, ST LC AND MU adapter
    4. Wavelength: 1310/1550

    Description:
    The products is mainly used in optical destribtuion network, in order to achieve cell-side of the multi-user access. The products are mainly applied a variety of chassis design, card access or bundled fixed. Total 1 input connector, a number of output connectors as the optical output, 2.0nm or 3.0nm cable protection, reliable, compact, plug-and-play.

    Features:
    1. Various coupling splitting ratios
    2. Small size reduced physical space requirements
    3. Cable length, diameter optional
    4. PC, UPC and APC connector Polish types
    5. Available with FC, SC, ST, LC and MU adapters
    6. Wavelength: 1310/1490/1550nm

    Techical Standard
    Type1:041:08
    Insertion loss(d B)≤7.4≤10.9
    Homogeneith (d B)≤1.2≤1.8
    Wavelength nm1310/1490/15501310/1490/1550
    Directivity (d B)≥50
    Return (d B)≥55
    Fiber TypeSMF-28e
    Polarization Dependent Loss (d B)≤0.3≤0.4
    Temperature Dependent Loss (d B)≤0.4≤0.6
    Wavelength Dependent Loss (d B)≤0.6≤0.9
    Operation Temperature °C-40~+85
    Storage Temperature °C-40~+85
    AdapterFC/SC

    Return Loss>45dB 1 × 8 1310 / 1550nm FC, SC, ST, LC, AND, MU Fiber Optic Splitter without connectorReturn Loss>45dB 1 × 8 1310 / 1550nm FC, SC, ST, LC, AND, MU Fiber Optic Splitter without connectorReturn Loss>45dB 1 × 8 1310 / 1550nm FC, SC, ST, LC, AND, MU Fiber Optic Splitter without connectorReturn Loss>45dB 1 × 8 1310 / 1550nm FC, SC, ST, LC, AND, MU Fiber Optic Splitter without connector
