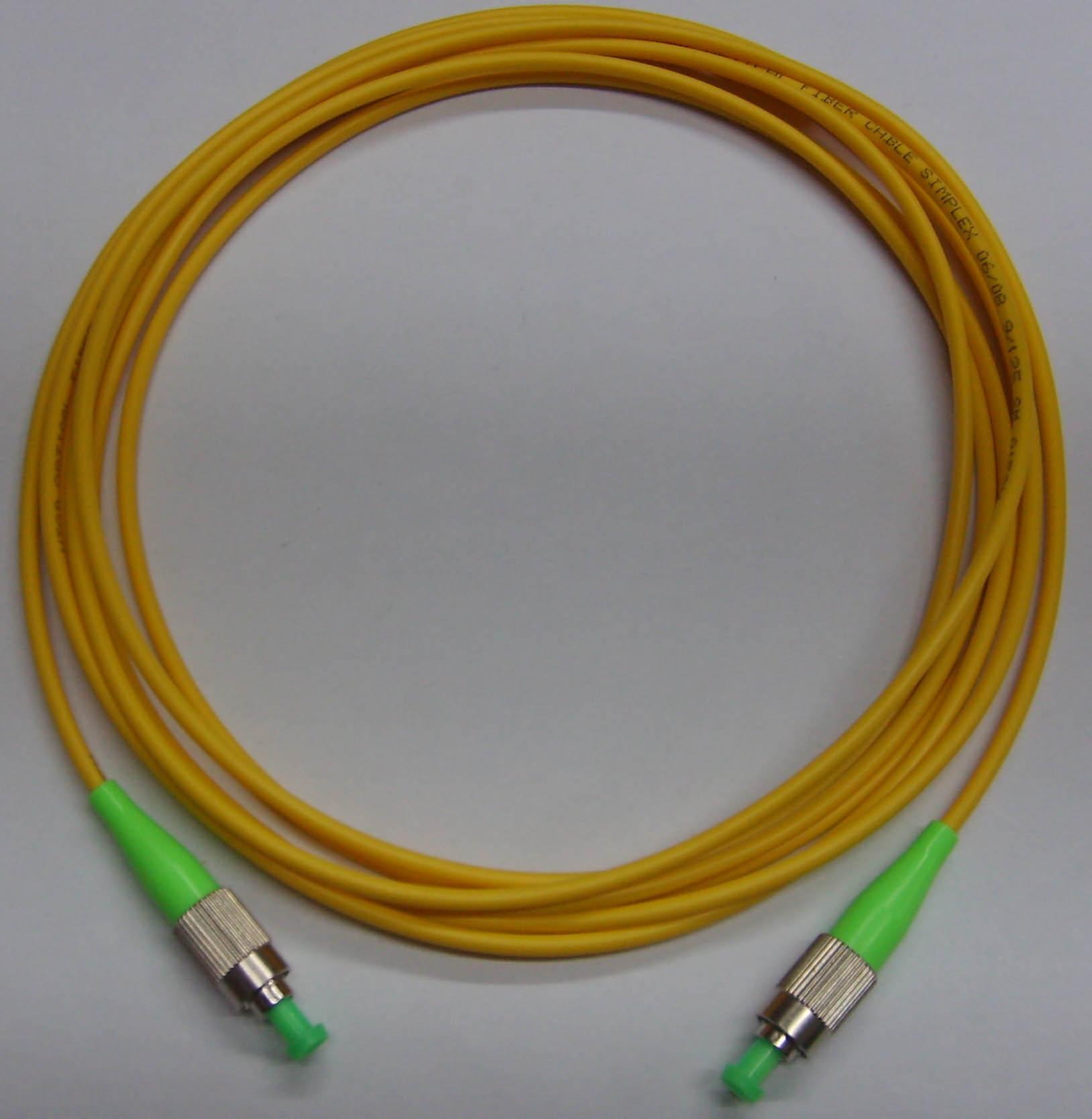

FC APC Fiber Optic Patch Cord with LSZH cable
FC fiber optic patch cords are with FC fiber optic connectors,
which is a screw type connection. FC stands for Fixed Connection.
It is fixed by way of threaded barrel housing. FC connectors are
generally constructed with a metal housing and are nickel-plated.
Features:
Low insertion loss, high return loss
Excellent mechanical endurance
High credibility and stability
Good in repeatability and exchangeability
Application:
1.FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
2.Video transmission , Data transmission
3.Active Device Termination
4.Premise Installations
5.Telecommunication and Data processing Networks
6.Industrial, medical & military
7.Systems Integration for Long Haul, Metro and Access Network
| Parameter | Unit | FC, SC, LC | ST, MU | MT-RJ, MPO | E2000 |
| SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC |
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 |
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Operating temperature | ℃ | -40~75 | -40~75 | -40~75 | -40~75 |
| Storage temperature | ℃ | -45~85 | -45~85 | -45~85 | -45~85 |
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 |
Ordering Information:
FC/APC–FC/ APC-SM- SX-Φ3.0–2M
① ② ① ② ③ ④ ⑤ ⑥
① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4,
SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or
62.5/125um)
④ Cable Quantity: “DX” means Duplex / “SX” means Simplex
⑤ Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH, OM3, OFNR, OFNP
