    FC Fiber Optic Patch Cord Low insertion loss high return loss

    Ask Lasest Price
    Brand Name : CY COM
    Model Number : 100pcs
    Certification : ISO9001:2015 , RoHS
    Delivery Time : 3-15 days
    Payment Terms : L/C,T/T,Western Union payments for offline orders.
    Supply Ability : 1 million connector / month
    • Product Details
    • Company Profile

    FC Fiber Optic Patch Cord Low insertion loss high return loss

    FC Fiber Optic Patch Cord Low insertion loss high return loss supply testing equipment

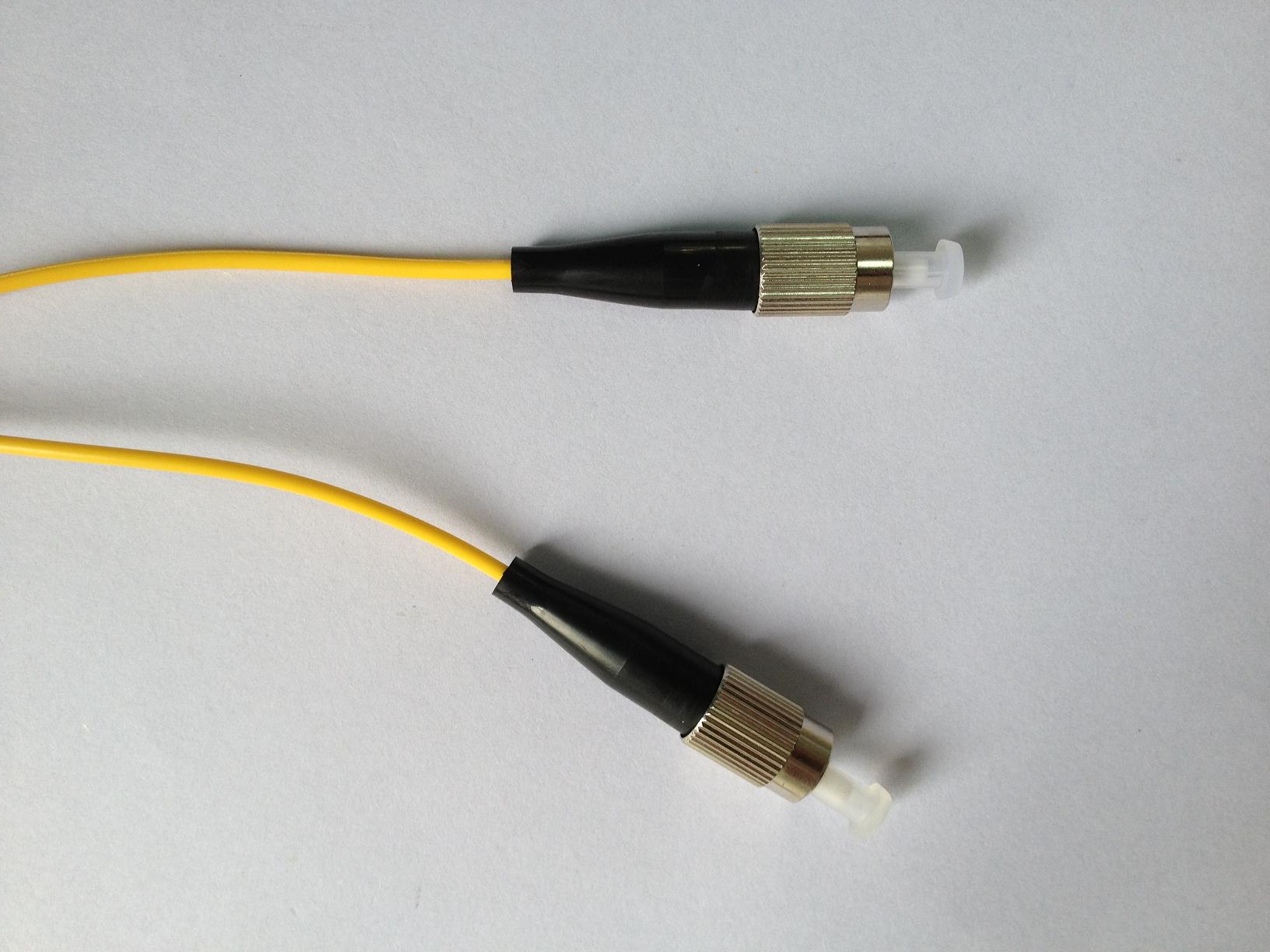

    FC-FC fiber patch cord
    FC fiber optic patch cords are with FC fiber optic connectors, which is a screw type connection. FC stands for Fixed Connection. It is fixed by way of threaded barrel housing. FC connectors are generally constructed with a metal housing and are nickel-plated.


    Features:
    Low insertion loss, high return loss
    Excellent mechanical endurance
    High credibility and stability
    Good in repeatability and exchangeability


    Application:

    1.FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
    2.Video transmission , Data transmission
    3.Active Device Termination
    4.Premise Installations
    5.Telecommunication and Data processing Networks
    6.Industrial, medical & military
    7.Systems Integration for Long Haul, Metro and Access Network

    Mechanical Drawings:


    Specification:

    Parameter

    Unit

    FC, SC, LC

    ST, MU

    MT-RJ, MPO

    E2000

    SM

    MM

    SM

    MM

    SM

    MM

    SM

    PC

    UPC

    APC

    PC

    PC

    UPC

    PC

    PC

    UPC

    PC

    PC

    APC

    Insertion loss(typical)

    dB

    ≤0.3

    ≤0.2

    ≤0.3

    ≤0.2

    ≤0.3

    ≤0.2

    ≤0.2

    ≤0.3

    ≤0.2

    ≤0.2

    ≤0.3

    ≤0.3

    Return loss

    dB

    ≥45

    ≥50

    ≥60

    ≥30

    ≥45

    ≥50

    ≥30

    ≥45

    ≥50

    ≥35

    ≥55

    ≥75

    Operating wavelength

    nm

    1310, 1510

    1310, 1510

    1310, 1510

    1310, 1510

    Exchangeability

    dB

    ≤0.2

    ≤0.2

    ≤0.2

    ≤0.2

    Vibration

    dB

    ≤0.2

    ≤0.2

    ≤0.2

    ≤0.2

    Operating temperature

    -40~75

    -40~75

    -40~75

    -40~75

    Storage temperature

    -45~85

    -45~85

    -45~85

    -45~85

    Cable diameter

    mm

    φ3.0, φ2.0, φ0.9

    φ3.0, φ2.0, φ0.9

    φ3.0, φ2.0, φ0.9

    φ3.0, φ2.0, φ0.9
