High Precision of Mechanical Dimension FC optical Adapter Green or red Color

Ask Lasest Price
Brand Name :	CY COM
Certification :	RoHS
Delivery Time :	in 3-5 days
Payment Terms :	L/C,T/T,Western Union payments for offline orders.
Supply Ability :	4.5 MIllion PCS / Month
Model Number :	FC Adapter
Price :	USD0.09-0.125/PCS

Add to Cart

Product Details
Company Profile

High Precision of Mechanical Dimension FC optical Adapter Green or red Color

Discription:

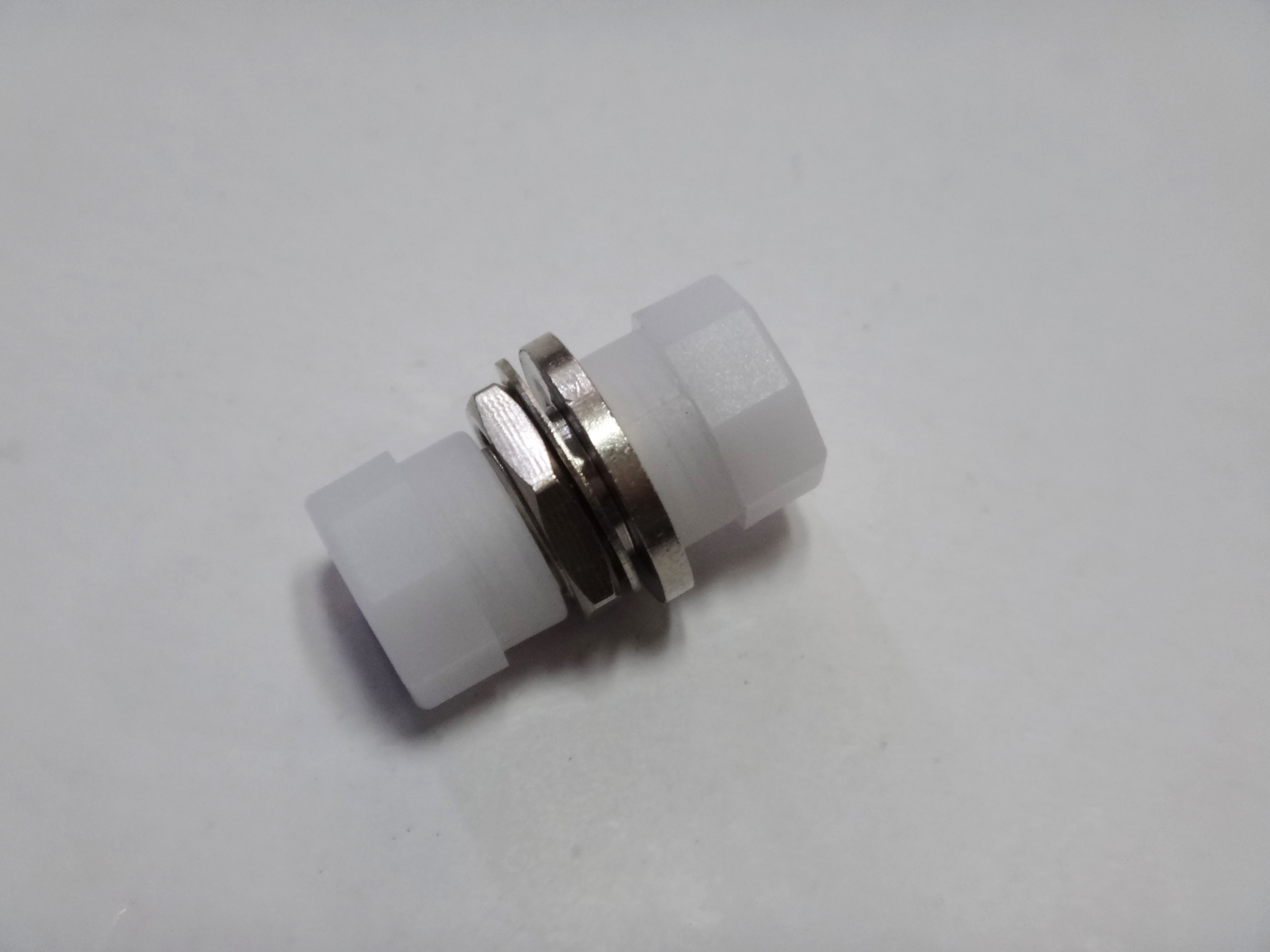

FC fiber optic adapters are with metal housing, single-mode FC adapters are with zirconia sleeves, multi-mode FC adapters are with bronze sleeves.
An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.

Features:

Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
PC,APC,UPC optional
Simplex / Duplex

Application:

Telecommunication
Computer networks
CATV networks
Active device termination
Instrumentation

Specification:

rameter	Unit	LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC,				MTRJ			E2000
		SM			MM	SM		MM	SM
		PC	UPC	APC	PC	PC	UPC	PC	PC	APC
Insertion Loss (Typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return Loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥35	≥55	≥75
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Repeatability	dB	≤0.2				≤0.2			≤0.2
Durability	Time	＞1000				＞1000			＞1000
Operating Temperature	℃	-40~75				-40~75			-40~75
Storage Temperature	℃	-45~85				-45~85			-45~85
