ST PC Fiber Optic Connector singlemode blue or black color 2.0/3.0mm 0.2dB insertion loss

Ask Lasest Price
Brand Name :	CY COM
Certification :	ISO9001:2015 , RoHS
Delivery Time :	in 2-5 days
Payment Terms :	L/C,T/T,Western Union payments for offline orders.
Supply Ability :	20000pcs per day
Model Number :	ST
Price :	usd0.24-0.34/pc

Add to Cart

Product Details
Company Profile

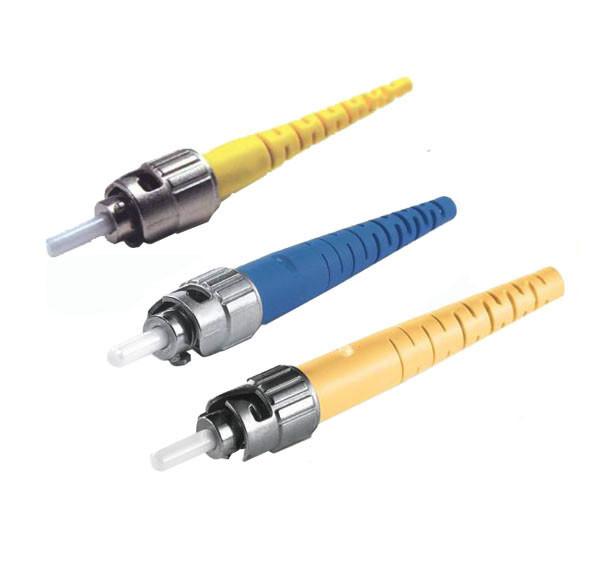

ST PC Fiber Optic Connector singlemode blue or black color 2.0/3.0mm 0.2dB insertion loss

ST PC Fiber Optic Connector singlemode blue or black color 2.0/3.0mm

ST stands for Straight Tip- a quick release bayonet style connector. ST connectors are cylindrical with twist lock coupling. They are push-in and twist types.

Feature:
Low insertion loss and return loss
Free-floating ceramic ferrule
UL-rated plastic housing and boot
Boots in a variety of colors
High precision alignment

Availability:
-The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
Housing kits without ferrule are available.
-PC and APC are available

Mechanical Drawings:

Specifications:

Item	Single mode	Multi mode
Insertion loss	PC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB	＜0.3dB
Return loss	PC ≥50 dB, UPC ≥55 dB & APC ≥60 dB	＞25dB
Insert-pull test	1000(times) ＜0.2dB
Operating temperature	-40℃~ +80℃
Ceramic ferrule spec	125.5um concentricity deviations: ＜1um	127um concentricity deviations: ＜3um
Suitable fiber	PC/APC(9/125um)	PC(50/125um, 62.5/125um)

Application:

1. CATV, metro test equipment; FTTH;

2. Telecommunication networks;

3. Local area networks (LAN);

4. Wide area networks (WAN);

5. Premise installations;

6. Data processing networks;

7. Video and military active device termination.

8. Optical Distribution Frame

9. Optical Network Equipments
