LC apc upc Fiber Optic Connector singlemode multimode blue beige green color

Ask Lasest Price
Brand Name :	CY COM
Certification :	ISO9001:2015 , RoHS
Delivery Time :	in 2-5 days
Payment Terms :	L/C,T/T,Western Union payments for offline orders.
Supply Ability :	15000pcs per day
Model Number :	LC
Price :	usd0.20-0.32/pc

Add to Cart

Product Details
Company Profile

LC apc upc Fiber Optic Connector singlemode multimode blue beige green color

LC apc upc Fiber Optic Connector singlemode multimode blue beige green color

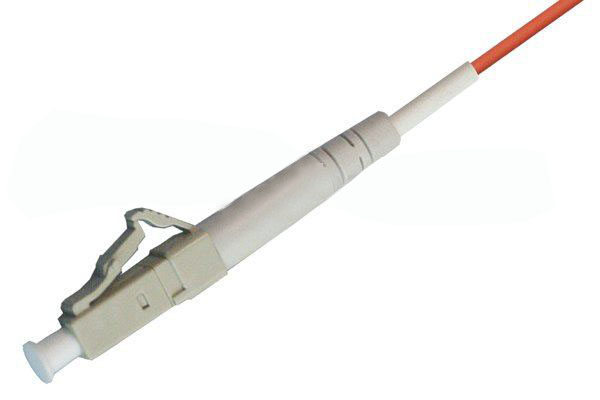

LC is a small form factor connector that uses a 1.25mm ferrule. It’s a standard ceramic ferrule connector, easily terminated with any adhesive.

Feature:

Low insertion loss and return loss
Free-floating ceramic ferrule
UL-rated plastic housing and boot
Boots in a variety of colors
High precision alignment

Availability:
-The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
Housing kits without ferrule are available.
-PC and APC are available

Specifications:

Item	Single mode	Multi mode
Insertion loss	PC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB	＜0.3dB
Return loss	PC ≥50 dB, UPC ≥55 dB & APC ≥60 dB	＞25dB
Insert-pull test	1000(times) ＜0.2dB
Operating temperature	-40℃~ +80℃
Ceramic ferrule spec	125.5um concentricity deviations: ＜1um	127um concentricity deviations: ＜3um
Suitable fiber	PC/APC(9/125um)	PC(50/125um, 62.5/125um)

Application:

1. CATV, metro test equipment; FTTH;

2. Telecommunication networks;

3. Local area networks (LAN);

4. Wide area networks (WAN);

5. Premise installations;

6. Data processing networks;

7. Video and military active device termination.

8. Optical Distribution Frame

9. Optical Network Equipments
