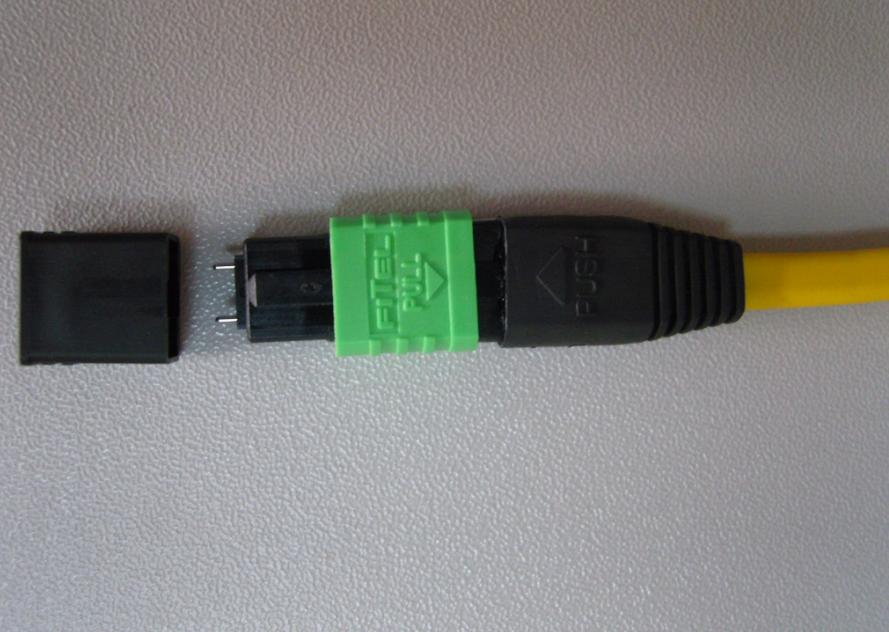

ISO, ROHS APC/UPC/PC Multi-core Multi-channel Pluggable MPO/MTP Fiber Optic Connector

MPO/MTP Connector
PC & APC
Single mode & Multimode
Cable length optional

Feature:

Low insertion loss and return loss
Free-floating ceramic ferrule
UL-rated plastic housing and boot
Boots in a variety of colors
High precision alignment

Availability:
-The MPO is a multi-fiber connector suitable for high-density backplane and printed circuit board (PCB) applications for data and telecom systems. MPO/MPT connectors have rectangle with a nominal diameter of 6.4mmx2.5mm ferrules and offer up to 12-times the density of standard fiber optic connectors that results in significant space and cost savings.

Specifications:

Item	Single mode	Multi mode
Insertion loss	PC＜0.5dB APC＜0.4dB	PC＜0.4dB
Return loss	PC＞45dB APC＞55dB	PC＞25dB
Insert-pull test	500 times＜0.5dB
Operating temperature	-40℃~ +80℃
Suitable fiber	PC/APC(9/125um)	PC(50/125um 62.5/125um)

Application:

1. CATV, metro test equipment; FTTH;

2. Telecommunication networks;

3. Local area networks (LAN);

4. Wide area networks (WAN);

5. Premise installations;

6. Data processing networks;

7. Video and military active device termination.

8. Optical Distribution Frame

9. Optical Network Equipments
