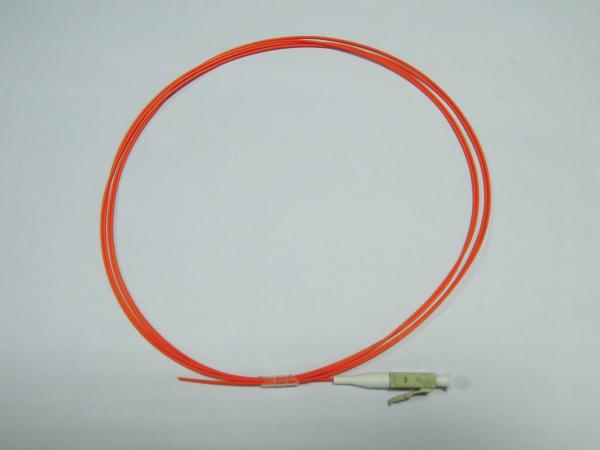

PVC, OM1, OM2 or OM3 LC PC MM SX 0.9mm Fiber Optic Pigtails for Industrial, Medical & Military

Features:
4, 6, 8, 12, 24, 48 fibers optional
With heat shrinkable tube
Applicable connector: FC, SC, ST, LC…
Cable material: PVC, OM1, OM2 or OM3 optional
Single mode or multi mode
Cable size: Φ 0.9mm, Φ2.0mm, Φ3.0mm

Specifications (compliant with Telcordia and IEC standard):
Types: single mode, multi mode
Insertion Loss (dB): ≤ 0.2 (UPC) , ≤ 0.3 (APC)
Return Loss (dB): ≥ 50 (SM/UPC) , ≥ 60 (SM/APC), 35(MM/UPC)
Exchangeability: ≤ 0.2 dB
Tensile Strength: ≤ 0.2 dB ( 0 to15 Kgf )
Temp. Range: (- 40 to +80 degree centigrade)
Geometric Specification of Fiber Optic Patch Cords Finished End-face (fiber optic patch cord that passed Geometric test is of super performance) :
Types: PC Connector, APC Connector
Radius of Curvature: 10 to 25 mm, 5 to 15 mm
Apex Offset: ≤50 um, ≤100 um
Fiber Spherical Height: -90 nm , +50 nm
Angular Offset: 8°± 0.5°C (APC)

Application:
