Low Insertion Loss LC Multimode Fiber Optic Adapter duplex beige color

Ask Lasest Price
Brand Name :	CY COM
Certification :	ISO9001:2015 , RoHS
Delivery Time :	in 3-5 days
Payment Terms :	L/C,T/T,Western Union payments for offline orders.
Supply Ability :	4.5 MIllion PCS / Month
Model Number :	LC MM
Price :	usd0.309-0.338/pc

Add to Cart

Product Details
Company Profile

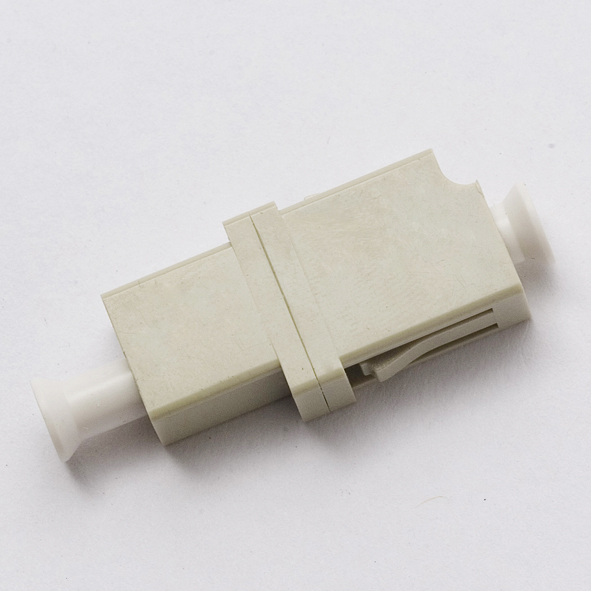

Low Insertion Loss LC Multimode Fiber Optic Adapter duplex beige color

Low Insertion Loss LC Multimode Fiber Optic Adapter duplex beige color

LC Adapters were developed by Lucent Technologies. They are composed of a plastic housing with an RJ45 push-pull style clip.

Features:
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
PC,APC,UPC optional
Simplex / Duplex

Specification:
Insertion loss: < 0.2dB
Repeatability: < 0.2dB
Exchangeability:< 0.2dB
Retention force: 200-600G
Durability Time: ＞1000
Temperature range: -40 - 80 degree Celsius

Application:

1.Telecommunication

2.Computer networks

3.CATV networks

4.Active device termination

5.Instrumentation

Sleeve Material: Ceramic or beryllium bronze;

Housing Material: Synthetic resin or alloy, with high precisemechanical dimensions, good compatibility;

Working Wavelength: 1200~1600nm

Working Condition: -40°C to +75°C;

Durability: less than 500 times repeated insert and pull out , insertion loss change≤0.20dB;

Repeatability: No more than 0.2dB ;

The adapters comply with the standard of NTT/Telcordia/IEC/TIA/EIA.

Mode: SM/APC Green SM/PC Blue MM/PC Beige MM/PC Light Green
