    Light Fiber Optic Terminal Box SC / FC / LC / ST Port With 48 Cores

    Ask Lasest Price
    Brand Name : CY
    Certification : ISO9001:2008, SGS
    Delivery Time : according to your target quantity
    Payment Terms : T/T, Western union
    Supply Ability : 600pcs per day
    • Product Details
    • Company Profile

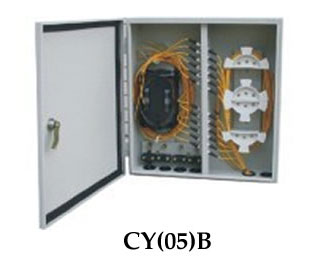

    Light Fiber Optic Terminal Box SC / FC / LC / ST Port With 48 Cores


    Light Fiber Optic Terminal Box SC / FC / LC / ST Port With 48 Cores


    Features:
    ■ Available for small capacity communication system, wall mounting, reasonable and compact structure, harmonized with machine room ;
    ■ The cabinet is composed of two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord.;

    ■ Provide fusion and storage appliance for optical cables ;
    ■ Reliable protection appliance of fixing, stripping and earthen for optical cables
    ■ Whole range protected design for fiber lay to ensure the bending radius=40mmf fiber wiring routing could facilitate management and maintenance of fibers
    ■ Provide various accessories to avoid any unexpected damage to the fiber
    Specification:

    Type

    CY/(05)A-24

    CY/(05)A-48

    CY/(05)A-72

    CY/(05)B-48

    CY/(05)B-72

    CY(05)A-24A

    CY(05)C-24

    CY(05)D-24

    Size(mm)
    L*W*H

    480*430*110

    480*430*150

    480*430*180

    480*430*150

    480*430*180

    385*385*115

    350*300*80

    350*300*80

    Inner Carton Weight(Kg)

    7

    8

    9

    8.5

    9.5

    3.8

    3.6

    3.6

    Max Capacity (Core)

    24

    48

    72

    48

    72

    24

    24

    24

    Outer Carton Dimension(mm)

    500*450*490

    500*450*490

    500*450*390

    500*450*490

    500*450*390

    405*405*605

    405*355*605

    500*450*490

    Q’ty per cartons (pcs)

    4

    3

    2

    3

    2

    5

    5

    5

    Outer Carton Weight (Kg)

    28.5

    25.5

    19.5

    27

    20.5

    20.8

    19.5

    19.5

    Adapter Port

    SC/FC/LC/ST

    SC/FC/LC/ST

    SC/FC/LC/ST

    SC/FC/LC/ST

    SC/FC/LC/ST

    SC/FC/LC/ST

    SC/FC

    SC/FC
