mpo mtp patch cord MPO Products MPO to MPO OM3 72 cores aqua cable corning fiber

Ask Lasest Price
Brand Name :	Senko / US CONEC / Furukawa Connector
Model Number :	MPO UPC 72F
Certification :	ISO9001:2015
Price :	US $81 - 84 / Piece
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50K
Delivery Time :	3-5 working days

Add to Cart

Product Details
Company Profile

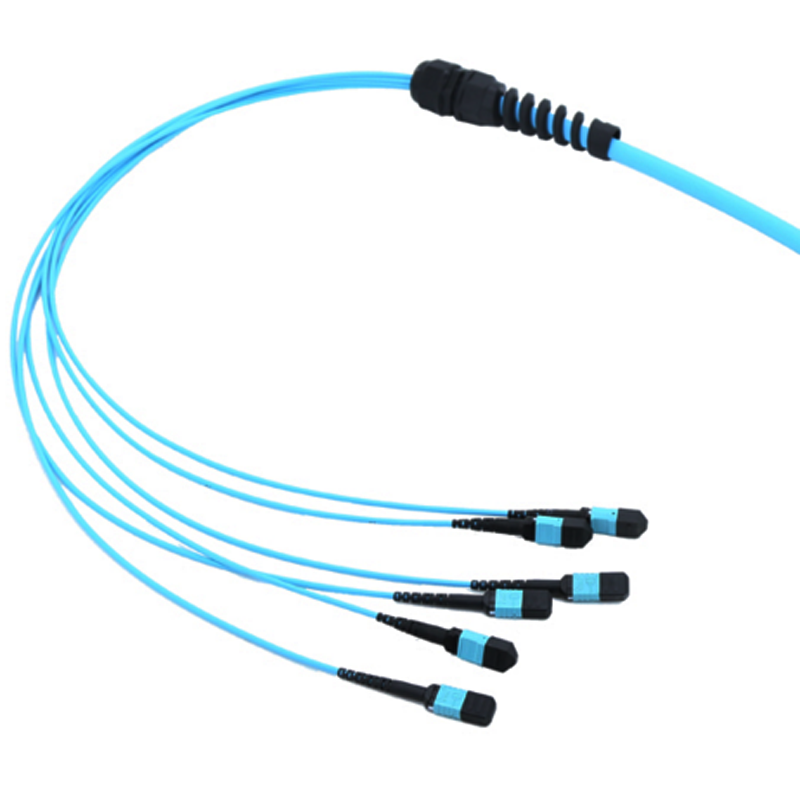

mpo mtp patch cord MPO Products MPO to MPO OM3 72 cores aqua cable corning fiber

Product Description

fiber optic mpo mtp patch cord are mainly used in high-density data centers, fiber to the building (FTTB) ,optical splitter / 40G/100G SFP / SFP + optical transceiver device to flexible connection between different modules. equipment and systems . so that the optical signal can transmit the desired channel, to achieve and complete a predetermined or desired purpose and requirements.

Advantages

Imported production and test equipments:EXFO IL&RL Tester/ Domaille Grinding Machine/ SENKO 3D Interferometer
Pretty high return loss:≥45dB
5-year Experience R&D Team
Customized Production and Service
40G/100G Data Center Solution

Application

Data center infrastructure
Storage area network
Emerging 40 & 100Gps Protocols
Parallel optics
Enterprise network cabling systerm

Technical Parameter

Item	Technical Parameters
Connector	MPO (F or M)	MPO(F or M)
Operation Temperature	-40°C ~ +80°C
Storage Temperature	-40°C ~ +85°C
Insertion Loss	SM: ≤ 0.75dB (standard value),≤0.35dB (typical value); MM:≤ 0.50dB (standard value),≤0.35dB (typical value);
Return Loss	SM:≥60dB; MM:≥35dB
The MPO end type	Male: with guide pin; Female: without guide pin
Fiber count	8,12&24 MT fiber
The other end of the connector type	MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000
Fiber mode	Single-mode(G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber cable type	250um ribbon fiber,ribbon cable,Bundle fiber optic cable

Polarity
