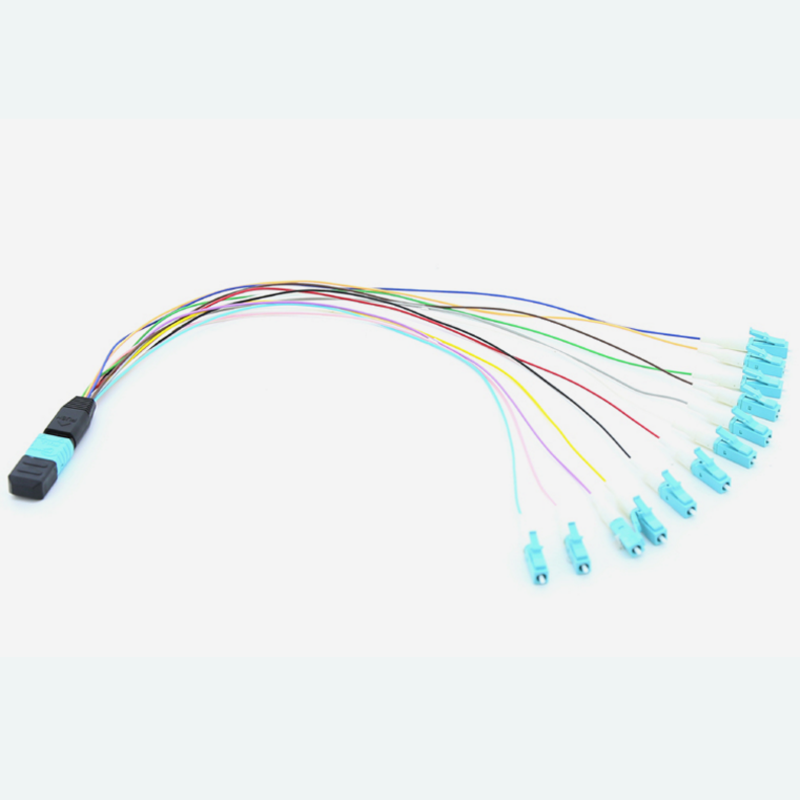

12 color 12 cores MPO to LC OM3 fanout fiber patch cord 0.9mm cables

Ask Lasest Price
Brand Name :	Senko / US CONEC / Furukawa Connector
Model Number :	MPO UPC 12F
Certification :	ISO9001:2015
Price :	US $13 - 15 / Piece
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50K
Delivery Time :	3-5 working days

Add to Cart

Product Details
Company Profile

12 color 12 cores MPO to LC OM3 fanout fiber patch cord 0.9mm cables

12 color 12 cores MPO to LC OM3 fanout fiber patch cord 0.9mm cables

Product Description

MPO-LC fanout patch cords are mainly used in high-density data centers, fiber to the building (FTTB) ,optical splitter / 40G/100G SFP / SFP + optical transceiver device to flexible connection between different modules. equipment and systems . so that the optical signal can transmit the desired channel, to achieve and complete a predetermined or desired purpose and requirements.

Features

Low insertion loss, high return loss
High precision, the precision of the MT guide pin and guide hole to ensure the accuracy of optical alignment
Materials meet the ROSH requirements

Application

Data center infrastructure
Storage area network
Emerging 40 & 100Gps Protocols
Parallel optics
Enterprise network cabling systerm

Technical Parameter

Item	Technical Parameter
Connector	MPO (Female)	LC
Operation Temperature	-40°C ~ +80°C
Storage Temperature	-40°C ~ +85°C
Insertion Loss	SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value); MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);	SM:≤ 0.2dB; MM:≤ 0.2dB;
Return Loss	SM:≥60dB; MM:≥35dB;	SM:≥60dB; MM:≥35dB;
The MPO end type	Male: with guide pin; Female: without guide pin
Fiber count	8,12&24 MT fiber
The other end of the connector type	MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000
Fiber mode	Single-mode(G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber cable type	250um ribbon fiber,ribbon cable,Bundle fiber optic cable

Polarity
