    Return Loss>45dB Reliability Optical Fiber Circulator 1310nm High Channel Isolation

    Ask Lasest Price
    Brand Name : CY
    Model Number : 1310nm Optical Circulator
    Price : FOB
    Payment Terms : T/T
    Supply Ability : 2000Piece/Day
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

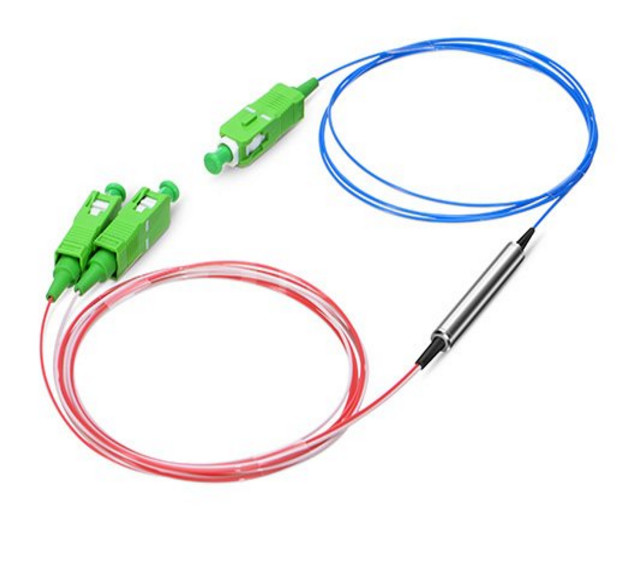

    Return Loss>45dB Reliability Optical Fiber Circulator 1310nm High Channel Isolation

    Reliability Optical Fiber Circulator 1310nm High Channel Isolation

    Optical circulator is a special kind of fiber optic components, with single fiber bidirectional transmission function. This function is often combined with optical fiber grating and other reflection components used in DWDM system. Dual-way communication system, the dispersion compensation, EDFA application and OTDR measurement.
    Detailed description

    Feature :


    A. High Channel Isolation

    B. Low PDL

    C. High Stability and Reliability

    D. Bi-Direction Communication

    E. Low Insertion Loss

    F.High Return Loss


    Application :

    • Optical Fiber Amplifier

    • CATV Optical Fiber Link

    • Optical Fiber System testing

    • Wavelength Add/Drop

    • Dispersion Compensation


    Specification


    Operating Wavelength (nm)1310±30
    ConfigurationPort1 to Port 2； Port2 to Port3
    GradeGRADE PGRADE A
    Insertion Loss(dB)Typical0.60.8
    Maximum0.81.0
    Channel Max. Isolation(dB)50
    Channel Min. Isolation(dB)40
    Directivity(dB)50
    PDL(dB)<0.15
    PMD(ps)<0.1
    RL(dB)>50
    Max. Operating Power(mW)500
    Operating Temperature(℃)0~70
    Storage Temperature(℃)-40~85
    Fiber typeSMF-28e
    Dimension (mm)1. Φ5.5xL50 ( bare fiber or 900um Loose tube)
    2. L90xW20xH9.5( 2.0mm or 3.0mm Cable)

    Above specification are for device without connector.

    Order Information


    ProductWavelengthGradePigtail TypeFiber length

    Connector

    Type

    3 Port Optical Circulator1310=1280~1340nm

    P=GradeP

    A=GradeA

    		1=250um bare fiber
    2=900um Loose tube
    3=2.0mm Cable
    4=3.0mm Cable    		1=1m
    1.5=1.5m
    C=Customer Request    		0=None
    1=FC/APC
    2=FC/PC
    3=SC/APC
    4=SC/PC
    5=LC
