Brand Name : | CY COM |
Model Number : | LC-SC SM DX Patch Cord |
Certification : | ISO9001:2015 , RoHS |
Price : | USD3.0-4.5/PCS |
Payment Terms : | L/C,T/T,Western Union payments for offline orders. |
Supply Ability : | 1 million connector / month |
Delivery Time : | 3-15 days |

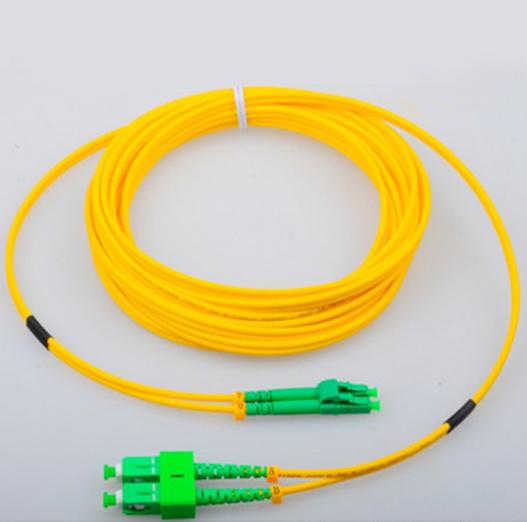

LC/APC-SC/APC Singlemode Duplex 2.0mm,corning fiber optical patch cord,LSZH cable
Specification:
Parameter | Unit | LC,SC | |
OM4 | |||
UPC | APC | ||
Insertion loss(typical) | dB | ≤0.2 | ≤0.2 |
Return loss | dB | ≥50 | ≥60 |
Operating wavelength | nm | 1310, 1490,1550 | |
Exchangeability | dB | ≤0.2 | |
Vibration | dB | ≤0.2 | |
Operating temperature | ℃ | -25~75 | |
Storage temperature | ℃ | -45~85 | |
Cable diameter | mm | φ3.0, φ2.0, φ0.9 |
Application:
--FTTX+LAN, Optical fiber CATV
--Fiber-optic communication system
--Fiber-optic data transmission
--Fiber-optic testing system
Order information:
♦Type: SX/DX optional
♦Ferrule end face: APC/UPC/PC
♦Diameter: 0.9, 2.0, 3.0mm
♦Length:1m, 2m, 3m to 120m
♦Fiber: SM/OM1/OM2/OM3/OM4
♦Material of jacket: PVC/LSZH/OFNR
![]() |
