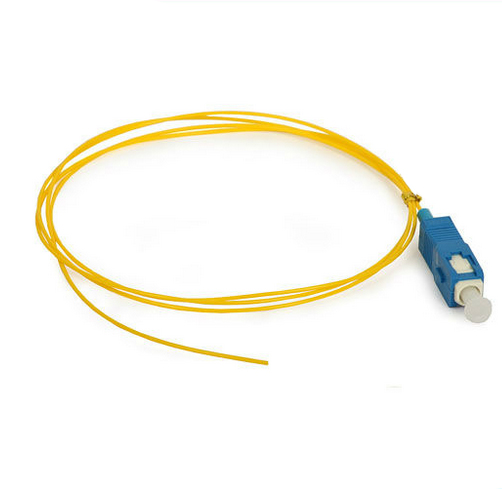

FC, LC,SC, singlemode or multimode, optical fiber pigtail,PVC or LSZH out cable

►Application:

1. Active device termination
2. Telecommunication networks
3. Video
4. Multimedia
5. Premise installations
6. Local area networks
7. FTTH and FTTX applications
8. CATV

►Material of patch cord:

1. Dust caps: LDPE, transparent (RoHS)
2. Plug housing: PBT, UPC/blue, APC/green, MM/beige (RoHS)
3. Inner frame: PBT, white (RoHS)
4. Ferrule: zirconium oxide ceramic material, white (RoHS)
5. Ferrule’s handle: copper (C3602), nickelage (RoHS)
6. Mechanical spring: stainless steel (RoHS)
7. Locating snap ring: copper alloy (HPD59-1), nickelage (RoHS)
8. Snap ring: aluminium alloy 6063 (RoHS)
9. Ring: copper alloy (HPD62), nickelage (RoHS)
10. Boot: nylon or PBT, UPC/blue, APC/green, MM/beige
11. Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNR and more

►Order information:

1. Type: SX/DX optional
2. Ferrule end face: APC/UPC/PC
3. Diameter: 0.9, 2.0, 3.0mm
4. Length:1m, 2m, 3m to 120m
5. Fiber: SM/OM1/OM2/OM3/OM4
6. Material of jacket: PVC/LSZH/OFNR

Company Profile

　   Shenzhen CY COM Product Co., Ltd is a high-tech enterprise specialized in designing, manufacturing and selling fiber optic telecommunication products. The products we are producing include fiber optic connector, fiber optic patch cord, pigtail, optical fiber adapter, attenuator, FBT/PLC splitter, optical fiber closure, terminal box and ODF. These products are wide used in all kinds of fiber optic telecommunication field, such as telecom, CATV, fiber optic data transmission, LAN ect.
　  Relying on the existing technology advantage, adopting the modern enterprise system to standardize enterprise behavior, we set up a strict quality guarantee system according to the requirements of international management standard ISO9001:2008, and our products are approval by world wide customers.
　　

     “Carrying on integrity, looking for better from best, searching for excellence, customer is the king.” is our company management policy. And we insist on to serve our customers with high-quality products and best service. Let’s effort together, and create a bright future in fiber optic telecommunication field.

Partaners:

HUAWEI Technology Co., Ltd.

Zhongxing Telecommunication Equipment Corporation（ZTE）

FiberHome Technologies Group

SUNSEA TELECOMMUNCIATIONS CO., LTD

Famous communication enterprises and other domestic and international  Communication engineering company,Equipment company and Trading Company

Organization Structure:

Product Line

Equitment and Instrument

Company certificate

Product ROHS test report

ISO9001:2015 Certification

ISO14001:2015 Certification
