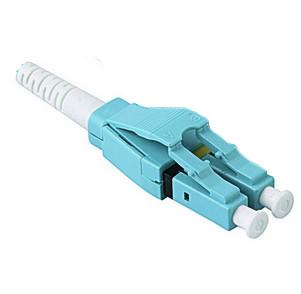

    LC OM3 Duplex Uniboot Fiber Optic Connector RohS Material,aqua color

    Ask Lasest Price
    Brand Name : CY COM
    Model Number : LC uniboot DX connector
    Certification : SGS
    Price : USD1.49-1.55/PCS
    Payment Terms : L/C,T/T,Western Union payments for offline orders.
    Supply Ability : 12000pcs/day
    Delivery Time : according to your order quantity
    • Product Details
    • Company Profile

    LC OM3 Duplex Uniboot Fiber Optic Connector RohS Material,aqua color

    Chinese orginal supplier LC OM3 duplex uniboot fiber optic connector,RohS material

    1.Characteriatics:

    • Have two dismount gap, easy to dismount
    • Streamline design, good aesthetic
    • Uniboot connector cable management
    • Switchable Connector to change polarity
    • MINI Boot & Flex angle boot available
    • Right Angle Clip well for panel management

    2.Application:


    • CATV, metro test equipment; FTTH;
    • Telecommunication networks;
    • Local area networks (LAN);
    • Wide area networks (WAN);
    • Premise installations;
    • Data processing networks;
    • Video and military active device termination.
    • Optical Distribution Frame
    • Optical Network Equipments

    3.Specifications:


    Item

    Single mode

    Multi mode

    Insertion loss

    PC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB

    <0.3dB

    Return loss

    PC ≥50 dB, UPC ≥55 dB & APC ≥60 dB

    >25dB

    Insert-pull test

    1000(times) <0.2dB

    Operating temperature

    -40°C~ +80°C

    Ceramic ferrule spec

    125.5um concentricity deviations: <1um

    127um concentricity deviations: <3um

    Suitable fiber

    PC/APC(9/125um)

    PC(50/125um, 62.5/125um)


    4.Drawing:
