    Chinese supplier of fiber optic cable,2-144 cores,GYFTC8S Figure 8 self-supporting amored outdoor cable

    Ask Lasest Price
    Brand Name : CY
    Model Number : GYFTC8S armored outdoor cable
    Certification : SGS,RoHS
    Price : USD 0.0625-1.25/Mtr
    Payment Terms : L/C,T/T,Western Union
    Supply Ability : 20000M per Day
    Delivery Time : in 4-6 days
    MOQ : 1000M
    • Product Details
    • Company Profile

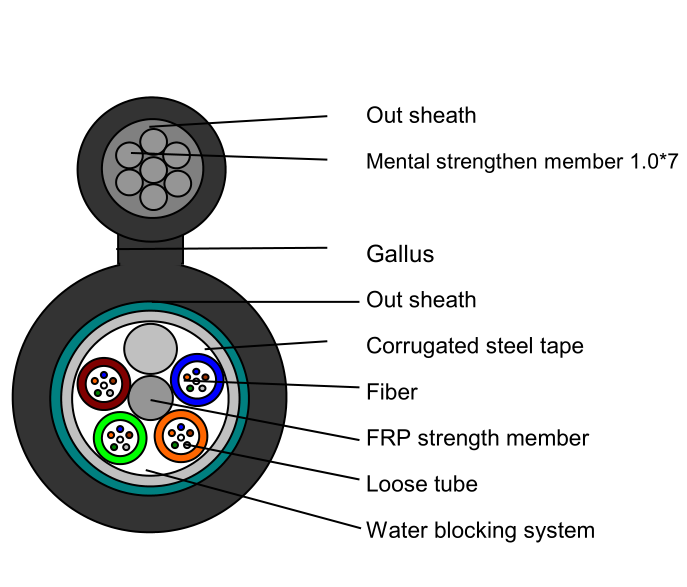

    Chinese supplier of fiber optic cable,2-144 cores,GYFTC8S Figure 8 self-supporting amored outdoor cable

    Chinese supplier of fiber optic cable,2-144 cores,GYFTC8S Figure 8 self-supporting amored outdoor cable


    Characteristics:


    ☆.Stainless steel or gaivanized steel self-supporting.

    ☆.Excellet mechanical and environmental performance.

    ☆.Fiber count : 2-144 fibers


    Application:


    ☆. Adopted to Outdoor distribution.

    ☆.Suitable for aerial duct ,buried method(self-supporting method)

    ☆.Long distance and local area network communication.

    Technical Parameters:
    Cable CountOut sheath
    Diameter
    WeightMinimum allowable Tensile Strength
    (N)
    minimum allowable Crush Load
    (N/100mm)
    Minimum Bending Radius
    (MM)
    Storage
    temperature
    (MM)(KG)short termlong termshort termlong termshort termlong term(℃)
    245.5×10.0145.00300010003000100020D10D-40+60
    365.5×10.0150.00300010003000100020D10D-40+60
    425.5×10.0150.00300010003000100020D10D-40+60
    485.5×10.0150.00300010003000100020D10D-40+60
    605.5×10.0150.00300010003000100020D10D-40+60
    727.0×12.0170.00300010003000100020D10D-40+60
    967.0×12.0190.00300010003000100020D10D-40+60
    1447.0×14.0225.00300010003000100020D10D-40+60


    Order Information:

    • Cable type:SM or MM( Sinlge-mode:yellow; Multi-mode:orange;options available for other colours
    • Fiber Type:SM(G652D,G655C,G657A1,G657A2,G657B3....) MM(OM1,OM2,OM3,OM4)
    • Fiber count: 2-144
    • Cable length: 2000M/Drum( customized, MOQ=2000M)
    • Cable Jacket: Outer sheath Black
