Stainless Steel Fiber Optic Polishing Machine Corner Pressure And Center Pressure

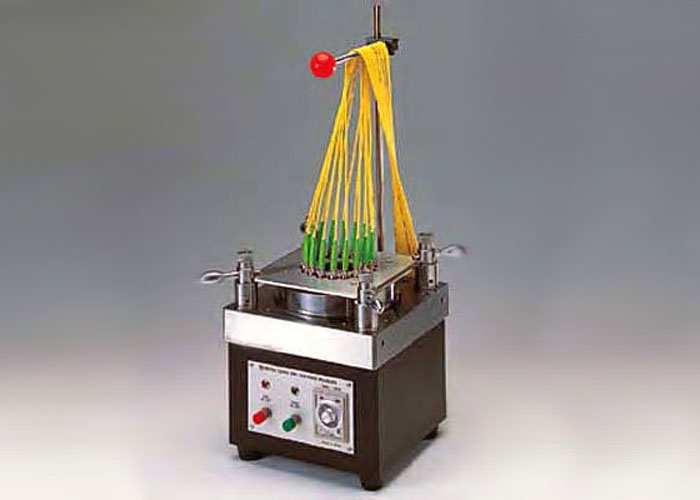

Fiber Connector Polish Machines HW-2000M

Key Features:
• Optical Fiber Polisher, HW-2000M is corner pressure polishing machine for fiber connectors
• Application for high volume production, and the polishing jig is fixed with 4 points, the polishing pressure isdetermines by coil spring and elastic cushion
• Designed for polishing manner with planet tray
• Using a new I.P.C jig technology (every ferrule is pressed singly) and making the finished yield rate much
higher
• Dual APC & PC polishing and Accommodating most styles of connectors
• High efficiency to deal with all kinds of connectors. The maximum polishing quantity for MU and LC connectors is 24 pcs; And maximum polishing quantity for SC, FC and ST connectors is 20 pcs
• The polisher was made by high quality stainless steel with heat treatment and it is high accuracy and
durability

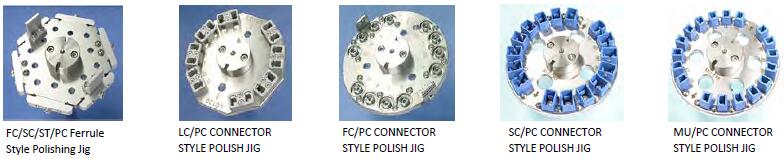

• Quick to change jigs, Easy and flexible to operate
• APC return loss as low as -70 dB, UPC return loss as low as -60 dB, Insertion loss 0.2 dB typical
• Super centering accuracy
• Excellent connector endface polishing quality

Specifications:

Fiber Connector Polish Machines HW-900CPM

HW-900CPM Digital Control Polisher is developed with micro computer technoloty. It is integrate motor timing,timer and counter. It works with high stability. This model is operated with touch buttons, which is provide with waterproof function and excellent appearance

Key Features:
• Optical Fiber Polisher, HW-900CPM is center pressure polishing machine for fiber connectors
• Fixed torque of adjustable motor doesn’t change with varied speed, it also reduces the polish variance
• Unique design: Electrical, air and water are kept separated inside of cabinet, ensuring safe operation
• Movable arm weight assures correct polishing force for various polishing steps and configurations
• Memory Function: Speed Setting, Time Setting, Counts all use EEPROM memory, all settings data will not get
lost after power failure.
• Adjusting speed with touch button, Speed range: 35 rpm ~ 190 rpm.
• The polisher was made by high quality stainless steel with heat treatment and it is high accuracy and durability
• Quick to change jigs, Easy and flexible to operate
• Used for all types of optical fiber connectors :fc / upc, sc / upc, st / upc, lc / upc,mu / upc, fc / apc, sc / apc, mtrj, e2000, etc.
• Purified water and polish fluid can be used to save on consumable costs

Company Profile

　   Shenzhen CY COM Product Co., Ltd is a high-tech enterprise specialized in designing, manufacturing and selling fiber optic telecommunication products. The products we are producing include fiber optic connector, fiber optic patch cord, pigtail, optical fiber adapter, attenuator, FBT/PLC splitter, optical fiber closure, terminal box and ODF. These products are wide used in all kinds of fiber optic telecommunication field, such as telecom, CATV, fiber optic data transmission, LAN ect.
　  Relying on the existing technology advantage, adopting the modern enterprise system to standardize enterprise behavior, we set up a strict quality guarantee system according to the requirements of international management standard ISO9001:2008, and our products are approval by world wide customers.
　　

     “Carrying on integrity, looking for better from best, searching for excellence, customer is the king.” is our company management policy. And we insist on to serve our customers with high-quality products and best service. Let’s effort together, and create a bright future in fiber optic telecommunication field.
