Features:

• In-line with Telcordia GR-326-CORE standard
• Low insertion loss, high return loss, high reliability
• Good repeatability, interchangeability
• Any diameter of fiber can be chose, 0.9, 2, 3mm ,10g fiber, low smoke and zero halogen can be chosen

Application:

• Fiber-optic communication system
• Fiber-optic data transmission
• LAN, CATV
• Fiber-optic testing system

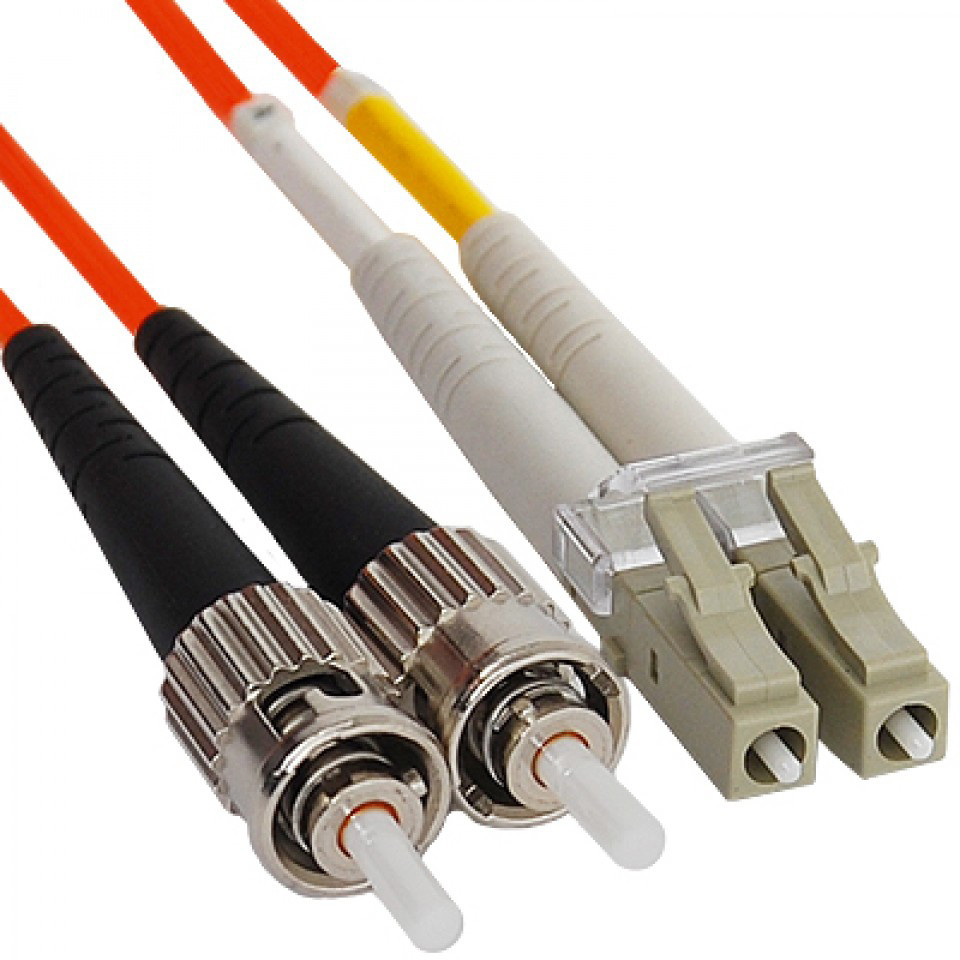

Material of patch cord:

• Dust caps: LDPE, transparent (RoHS)
• Plug housing: PBT, UPC/blue, APC/green, MM/beige (RoHS)
• Inner frame: PBT, white (RoHS)
• Ferrule: zirconium oxide ceramic material, white (RoHS)
• Ferrule’s handle: copper (C3602), nickelage (RoHS)
• Mechanical spring: stainless steel (RoHS)
• Locating snap ring: copper alloy (HPD59-1), nickelage (RoHS)
• Snap ring: aluminium alloy 6063 (RoHS)
• Ring: copper alloy (HPD62), nickelage (RoHS)
• Boot: nylon or PBT, UPC/blue, APC/green, MM/beige
• Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNP

Specification:

Order information:

• For example: SC/UPC-SC/UPC-SM-SX-2.0-5M-LSZH Armored patch cord
• Type: SX/DX optional
• Ferrule type: APC/PC
• Diameter: 0.9, 2.0, 3.0mm
• Length: 1, 2, 3 to 120m
• Fiber: SM/OM1/OM2/OM3/OM4
• Material of jacket: PVC/LSZH/OFNP
