LAN / CATV Fiber Optic Patch Cord , SC-SC Duplex 2.0mm 3.0mm SM PVC Cable

Ask Lasest Price
Brand Name :	CY COM
Certification :	ISO9001:2015 , RoHS
Model Number :	SC-SC-DX-SM-003
Delivery Time :	3-15 days
Payment Terms :	L/C,T/T,Western Union payments for offline orders.
Supply Ability :	1 million connector / month

Add to Cart

Product Details
Company Profile

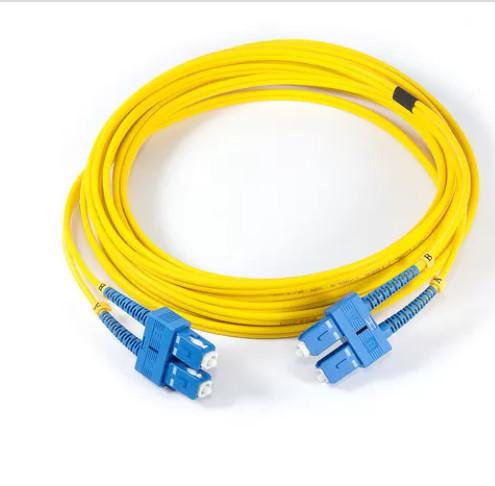

LAN / CATV Fiber Optic Patch Cord , SC-SC Duplex 2.0mm 3.0mm SM PVC Cable

LAN / CATV Fiber Optic Patch Cord , SC-SC Duplex 2.0mm 3.0mm SM PVC Cable

Features
♦ In line with Telcordia GR-326-CORE standard
♦ Low insertion loss,high return loss,high reliability
♦ Good repeatability,interchangeability
♦ Any diameter of fiber can be chose ,0.9mm,2mm,3mm ,
10G fiber,Low Smoke and Zero Halogen can be chose.

Application
♦ Fiber optic communcation system;
♦ Fiber optic data transmission;
♦ LAN , CATV ;
♦ Fiber optic testing system.

Specification:

Item	Unit	LC/SC/FC/ST Fiber Patch Cord
Item	Unit	SM			MM
Fiber Diameter	UM	9/125			65.5/125	50/125
Polishing		PC	UPC	APC	PC	PC
Insertion Loss	dB	≤0.2	≤0.15	≤0.2	≤0.1	≤0.1
Return Loss	dB	≥55	≥50	≥60	≥35dB	≥35dB
Insert-pull Test	dB	≤0.2	≤0.2	≤0.3	≤0.15	≤0.15
Interchangeability	dB	≤0.1	≤0.1	≤0.15	≤0.1	≤0.1
Temperature Range	℃	-40~+80
Durability(1/Matings)	≥1000
Tensile Strength (N)	≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber	9/125um, 50/125um,62.5/125um,ect
Diameter	0.9mm 2.0mm, 3.0mm etc
Cores	Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc

Ordering Information
For Example: FC/PC-FC/PC-SM-SX-φ3.0-3M
Connector Type:FC,SC,LC,ST,MPO,MTRJ,MU,E2000,D4,DIN,SMA
Ferrule End-face:PC,UPC,APC
Core Type: Single-mode(SM:9/125μm), Multimode(MM:50/125μm or 62.5/125μm)
Product Structure:“DX”means Duplex,“SX”means Simplex
Fiber Diameter: φ3.0mm,φ2.0mm,φ0.9mm
Cable Length:1,2,3meter or customized.
Cable Type:PVC,LSZH,OM3,OFN
