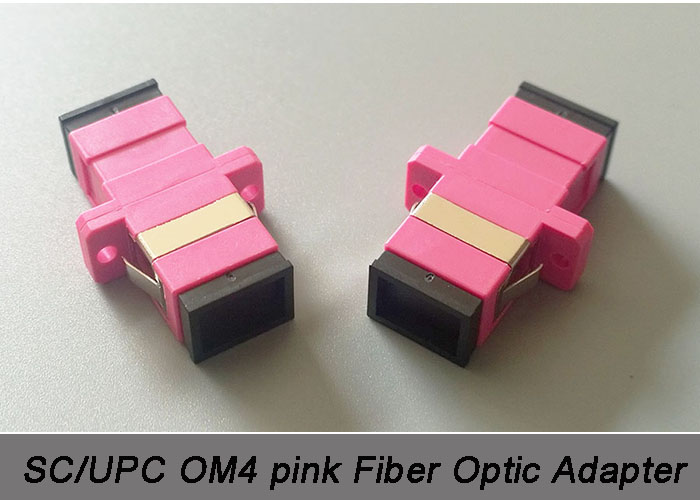

OM4 SC Pink 50μm High precision dimension Fiber Optic Adapter with flange
Product characteristic
1.Good inerchangeability
2.Environmentally Stable and Reliable
3.Accurate Size
4.Excellent Return Loss
5.Applicable standard: IEC 61754-13
6.Complete Hybrid adapter
Application
1. CATV
2. Optical fiber communication systems.
3. Optical access network.
4. Optical fiber data transmission.
technical parameters
material:ceramic
repeatability: ≥1000 times
insert loss: SM ≤0.2 dB, MM ≤ 0.3 dB
compatibility: ≤ 0.2 dB
| Optical Parameter | W/Japanese Ceramic Sleeve | W/Chinese Ceramic Sleeve | W/P.B Sleeve |
| Insertion Loss | <0.1 dB | <0.2dB | <0.3dB |
| Durability | <0.10 dB typical change,1000 times | <0.2dB typical change,1000 times | <0.30 dB typical change,500 times |
| Operating Temp | -20~75°C |
| Storage Temp. | -40~85°C |
