High Density Fiber Optic Patch Cord OM3 OM4 8 12 24F G657A1 MPO MTP

Ask Lasest Price
Brand Name :	Senko / US CONEC / Furukawa Connector
Model Number :	MPO MTP UPC OM3 OM4 8F 12F 24F
Certification :	ISO9001:2015
Price :	US $10 - 20/ Piece
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50K
Delivery Time :	7-8 working days

Add to Cart

Product Details
Company Profile

High Density Fiber Optic Patch Cord OM3 OM4 8 12 24F G657A1 MPO MTP

High density SENKO fiber optic patch cord OM3 OM4 8 12 24F G657A1 MPO MTP fiber optic patch cord

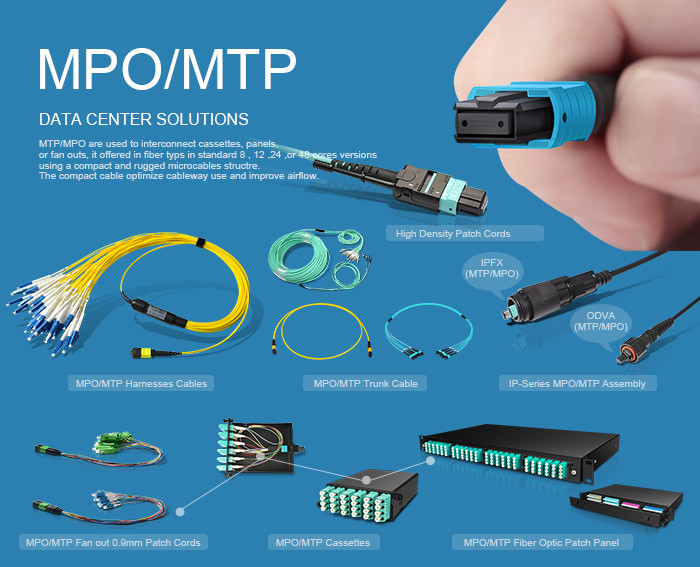

MPO trunk cables connect MPO modules together as a permanent link. The trunk cables are available with 24F,48F,60F,72F 96F,144F.Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MPO fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MPO also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassette with the new connector style on the cross-connect side of the patch panel.

Product Description

Spec items.	Single mode (APC 8-degree polished)	Multimode (PC Flat polish)
Insertion loss (MPO) (IEC 61300-3-34)	Standard MPO:≤0.75dB(max), ≤0.35dB(Typical) Elite MPO:≤0.35dB(max), ≤0.20dB(Typical)	Standard MPO:≤0.6dB(max), ≤0.35(Typical) Elite MPO:≤0.35dB(max) , ≤0.20dB(Typical)
Return loss(MPO)	≥60dB(8degree polishing)	≥25dB
Durability	<0.3dBtypical change, 200 matings
Interchangeability	≤0.2dB
Tensile strength	>70N
Operating Temperature	-40 to + 85°C

High Density Fiber Optic Patch Cord OM3 OM4 8 12 24F G657A1 MPO MTP
