    MPO MPO To LC Patch Cord Cable 12 Core 0.9mm Singlemode

    Ask Lasest Price
    Brand Name : Senko / US CONEC / Furukawa Connector
    Model Number : MPO LC UPC SM OM3 OM4 8F 12F 24F
    Certification : ISO9001:2015
    Price : US $10 - 20/ Piece
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50K
    Delivery Time : 7-8 working days
    • Product Details
    • Company Profile

    MPO MPO To LC Patch Cord Cable 12 Core 0.9mm Singlemode

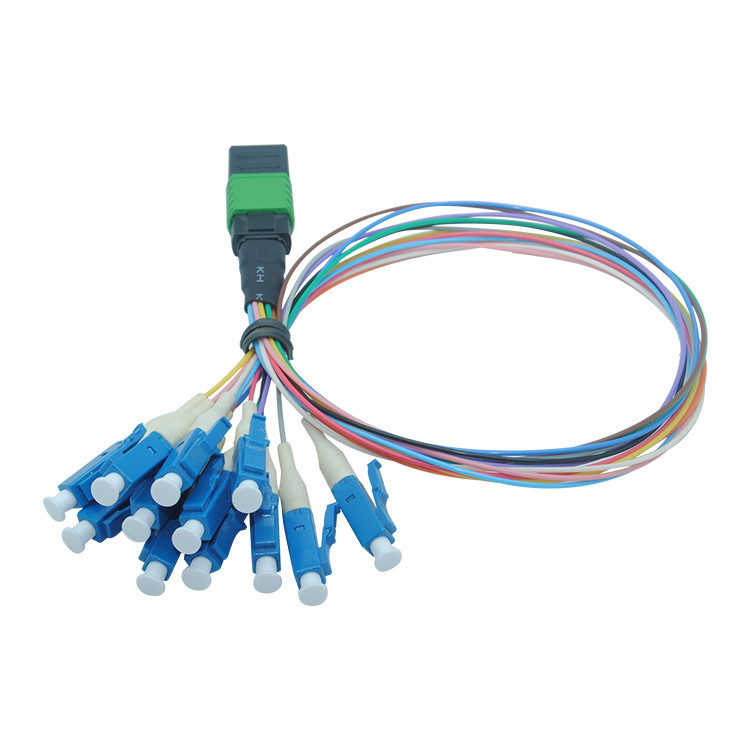

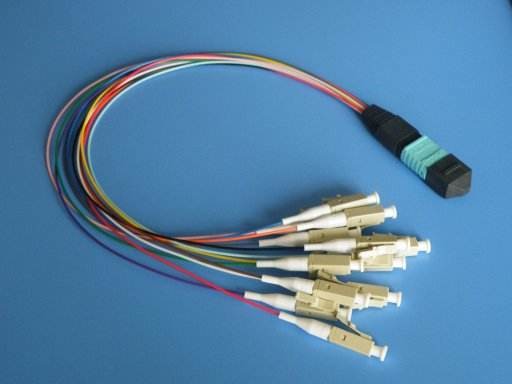

    MPO 12 Core 0.9mm Singlemode 1M Fanout Assembly MPO to LC patch cord cable


    Product Description
    TypeStandard,Master
    StyleLC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
    Duplex MTRJ/Female, MTRJ/Male
    Fiber Type
    9/125 SMF-28 or equivalent (Singlemade) OS1
    50/125, 62.5/125 (Multimode) OM2&OM1
    50/125, 10G (Multimode) OM3
    Cable TypeSimplex, Duplex (Zipcord)
    Φ3.0mm, Φ2.0mm, Φ1.8mm
    Φ1.6mm PVC or LSZH
    Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH
    Polishing MannerUPC,SPC,APC (8°& 6°)
    Insertion Loss≤ 0.1dB (For Singlemode Master)
    ≤ 0.25dB (For Singlemode Standard)
    ≤ 0.25dB (For Multimode)
    Tested by JDS RM 3750
    Return Loss
    (For Singlemode)
    UPC ≥ 50dB
    SPC ≥ 55dB
    APC ≥ 60dB (typ.65dB)
    Tested by JDS RM3750
    Repeatability
    ±0.1dB
    Operating temperature-40C to 85C
    Geometry Requirement
    (For Singlemode)
    Ferrule Endface Radius
    7mm ≤ R ≤ 12mm (For APC)
    10mm ≤ R ≤ 25mm (For Standard)
    Apex Offset ≤ 30 μm (For Master)
    Apex Offset ≤ 50 μm (For Standard)
    Undercut -50nm ≤ U ≤ 50nm
    Tested by DORC ZX-1

    Applications

    *Telecommunication networks, Gigabit Ethernet

    *CATV, Video, Multimedia

    *Active device termination, Premise installations

    *Industrial, Military
