    SM MTP MPO 40G / 100G Fiber Optical Patch Cord 72 / 144 Core 30M

    Ask Lasest Price
    Brand Name : Senko / US CONEC
    Model Number : MPO MTP 72/144cores Fiber optic patch cord
    Certification : ISO9001:2015 CE RoHS FCC
    Price : US $10 - 20/ Piece
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50K
    Delivery Time : 7-8 working days
    • Product Details
    • Company Profile

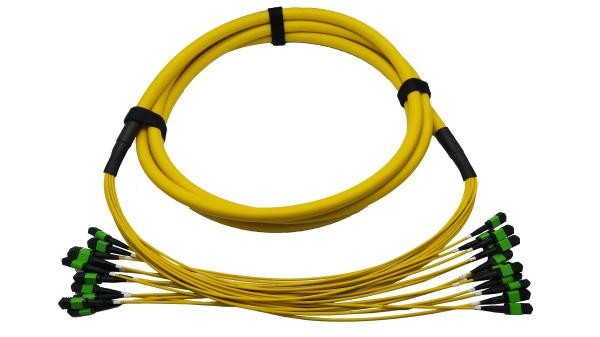

    SM MTP MPO 40G / 100G Fiber Optical Patch Cord 72 / 144 Core 30M

    Data Center Cabling SM MTP MPO 40G/100G Fiber Optical Patch Cord 72 / 144 Core Cable 30M
    Data Center Cabling SM MTP MPO 40G/100G Fiber Optical Patch Cord 72 / 144 core Cable
    MPO / MTP multi-core optical bai cable jumper assembly products are composed of multi-core optical cables and corresponding 4/8/12/24/48 core high du density MPO / MTP. This product can provide zhi male or female MPO / MTP models, and can choose 4~48 core single-mode and multi-mode optical cables of various specifications.

    Features:

    1. Low insertion loss, high return loss.
    2. MT based Multi-fiber Connector, 36-144 fiber connector terminations and assemblies.
    3. Economical solution for mass-termination of fiber.
    4. Designed for low loss and standard loss SM and MM applications.
    5. Ruggedized round cable, oval cable and bare ribbon options available.
    6. Color coded housings available to differentiate fiber type, polish type and/or connector grade.
    7. Good in repeatability and exchangeability.

    Application:

    ◆Backbone installation
    ◆Data center cabling
    ◆Support 40G and 100G network
    ◆Telecommunication network
    ◆Industrial&Military
    Connector Performance :

    Model

    SM

    MM

    Connector Fiber Count

    8, 12, 24,72,144 core

    Polish

    PC, APC

    Housing Color

    Standard (green),
    Elite (Yellow)

    Standard(Beige)
    Elite(Auqa)

    Insertion Loss Standard type

    less than 0.7dB

    Less than 0.5dB

    Insertion loss Elite type

    Less than 0.35dB

    Less than 0.3dB

    Return Loss

    PC >50dB, APC>60dB

    >30dB

    Durability (500 matings)

    less than 0.2dB

    less than 0.2dB

    Test Eavelength

    1310/1550nm

    850/1300nm


    SM MTP MPO 40G / 100G Fiber Optical Patch Cord 72 / 144 Core 30M
