Field Polarity / Pin Change MTP PRO Fiber Optic Connector Cable

Ask Lasest Price
Brand Name :	Senko / US CONEC/Made in China
Model Number :	MTP/MPO patch Cord
Certification :	ISO9001:2015 CE RoHS FCC
Price :	US $10 - 20/ Piece
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50K
Delivery Time :	7-8 working days

Add to Cart

Product Details
Company Profile

Field Polarity / Pin Change MTP PRO Fiber Optic Connector Cable

Product Description

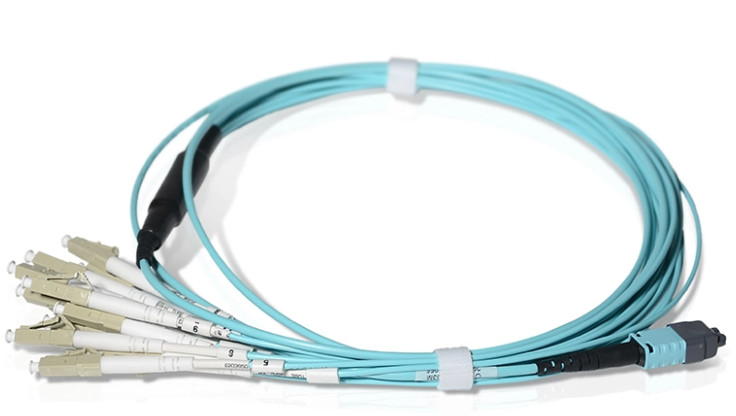

Fiber Optic Field Polarity/Pin Change MTP PRO connector cable

The MTP® PRO connector is the newest addition to the MTP brand MPO product family. This state-of-the-art connector brings simplified use to the MPO format by offering optimal field flexibility and enhanced performance, all while leveraging the proven features and technology of US Conec's MTP® connectors. With a novel design focused on simplicity and reliability, the MTP® PRO connector offers quick and effective polarity and pin reconfiguration in the field while ensuring product integrity and performance.

Connector Performance Specifications

Model	SM	MM
Connector Fiber Count	8, 12, 24 core
Polish	PC, APC
Housing Color	Standard (green), Elite (Yellow)	Standard(Beige) Elite(Auqa)
Insertion Loss Standard type	less than 0.7dB	Less than 0.5dB
Insertion loss Elite type	Less than 0.35dB	Less than 0.3dB
Return Loss	PC >50dB, APC>60dB	>30dB
Durability (500 matings)	less than 0.2dB
Test Eavelength	1310/1550nm	850/1300nm

Fiber Cable Perfomance Specifications

Fiber Type	OS2, OM1, OM2, OM3, OM4
Fiber Count	8, 12, 24, 48, 72, 96, 144 cores
Cable Diameter	3.0mm 5.5mm or customized
Jacket Color	Yeloow, Orange, Aqua, Purple
Jacket Material	OFNR, OFNP, PVC, LSZH
Tensile Strength	500N
Operating Temperature	-20 to 70 ºC
Storage Temperature	-40 to 75ºC

Application

Data communication network

Optical System Access network

Storage area networking fiber channel

High density architectures

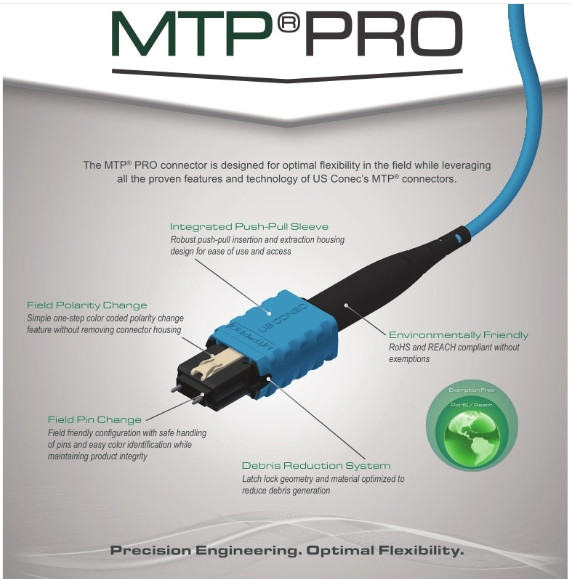

Features and Benefits

Field Pin Change
Field friendly configuration while maintaining product integrity with safe handling of pins and easy color identification
Field Polarity Change
Simple one-step color coded polarity change feature without removing connector housing
Debris Reduction System
Geometry and material optimized to reduce debris generation
Integrated Push-Pull Sleeve
Robust push-pull insertion and extraction housing design for ease of use and access
Environmentally Friendly
RoHS and REACH compliant without exemptions
