12 / 24 Fiber Female Optic Cable MTP MPO Loopback 3.0mm Cable Diameter

Ask Lasest Price
Brand Name :	Senko / US CONEC/Made in China
Model Number :	MTP/MPO Loopback
Certification :	ISO9001:2015 CE RoHS FCC
Price :	US $10 - 20/ Piece
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50K
Delivery Time :	7-8 working days

Add to Cart

Product Details
Company Profile

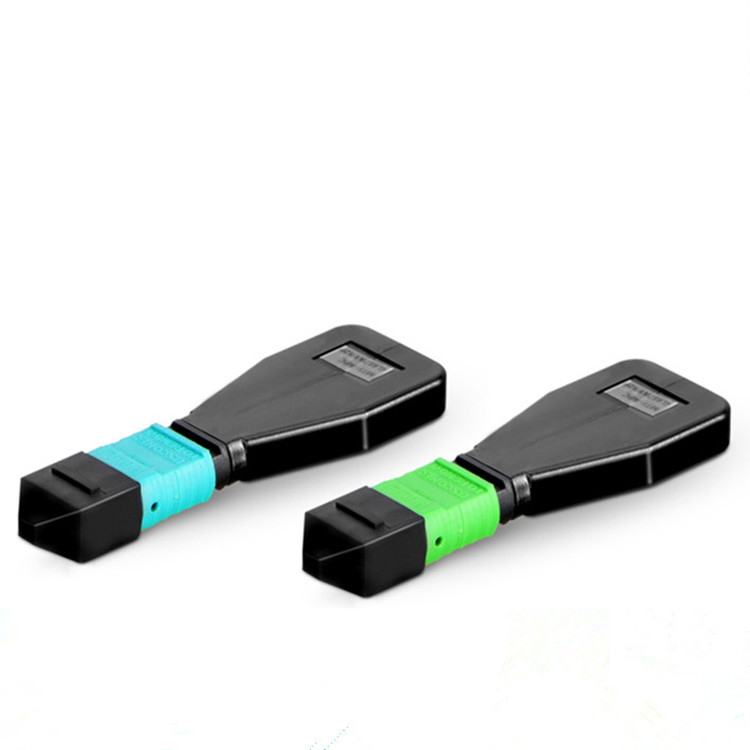

12 / 24 Fiber Female Optic Cable MTP MPO Loopback 3.0mm Cable Diameter

12 Fiber 24 Fiber Female Fiber Optic Cable MTP MPO Loopback 3.0mm Cable Diameter

Introduction

MTP / MPO OM3 Fiber Optic Loopback Tester is typically used for test and measurement procedures in networking environments.Features push-pull tab for easy disconnect. A dust cap is included for protection during storage.The device is ideal for a multitude of applications that require signal looping in a MTP / MPO form factor.

Application

Optical System Access network

Storage area networking fiber channel

High density architectures

Data communication network

Features and Benefits

MTP / MPO OM3 Loopback Tester

Protective dust cover included for protection during storage

4-inch overall length

Pin config: 1 -12, 2-11, 3-10, 4-9, 5-8, 6-7

Push-pull tab for quick disconnect

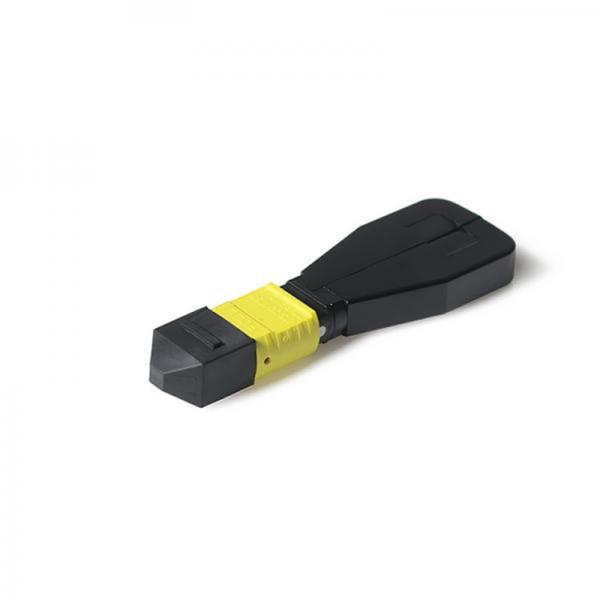

12 / 24 Fiber Female Optic Cable MTP MPO Loopback 3.0mm Cable Diameter

Connector Performance Specifications

Model	SM	MM
Connector Fiber Count	8, 12, 24 core
Polish	PC, APC
Housing Color	Standard (green), Elite (Yellow)	Standard(Beige) Elite(Auqa)
Insertion Loss Standard type	less than 0.7dB	Less than 0.5dB
Insertion loss Elite type	Less than 0.35dB	Less than 0.3dB
Return Loss	PC >50dB, APC>60dB	>30dB
Durability (500 matings)	less than 0.2dB
Test Eavelength	1310/1550nm	850/1300nm

Fiber Cable Perfomance Specifications

Fiber Type	OS2, OM1, OM2, OM3, OM4
Fiber Count	8, 12, 24, 48, 72, 96, 144 cores
Cable Diameter	3.0mm 5.5mm or customized
Jacket Color	Yeloow, Orange, Aqua, Purple
Jacket Material	OFNR, OFNP, PVC, LSZH
Tensile Strength	500N
Operating Temperature	-20 to 70 ℃
Storage Temperature	-40 to 75℃

12 / 24 Fiber Female Optic Cable MTP MPO Loopback 3.0mm Cable Diameter
