24f Male Female Om3 Fanout Breakout Harnesses Cable MPO To LC Patch Cord

Ask Lasest Price
Brand Name :	Senko / US CONEC/Made in China
Model Number :	24F MTP/MPO-LC fanout patch Cord
Certification :	ISO9001:2015 CE RoHS FCC
Price :	US $10 - 20/ Piece
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50K
Delivery Time :	7-8 working days

Add to Cart

Product Details
Company Profile

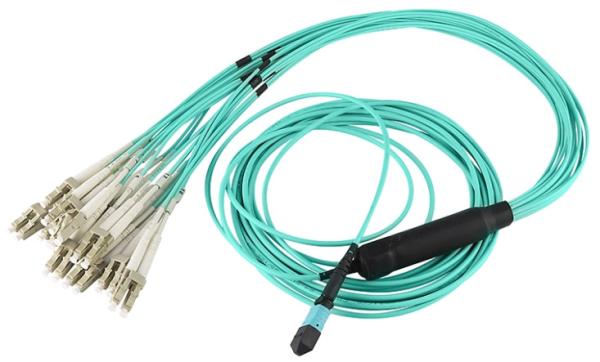

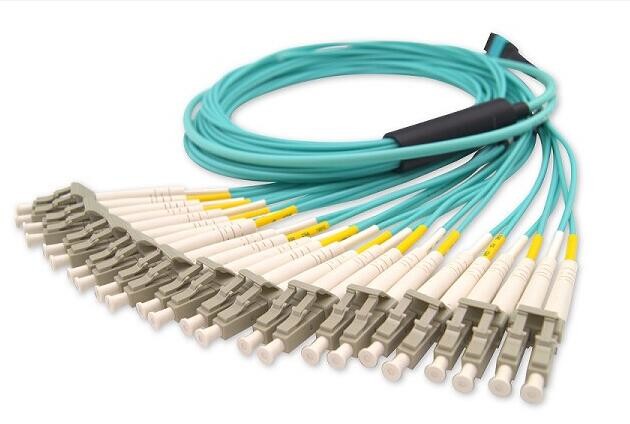

24f Male Female Om3 Fanout Breakout Harnesses Cable MPO To LC Patch Cord

24F male female OM3 fanout breakout Harnesses Cable MPO to LC Patch
Cord
MTP trunk cable, a cost-effective alternative to time-consuming
field termination, is designed for high-density fiber patching in
data centers which need space saving and reduce cable management
troubles.
0.35dB IL, MTP (MPO) to MTP(MPO) connector and 3.0mm Plenum (OFNP)
bunch cable is designed for 40G/100G direct connection and
high-density data center applications.
APPLICATION
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures

FEATURES
100% pre-terminated and tested in factory to ensure transfer
performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products
are available
PRODUCT PARAMETERS
Performance LevelStandardElite
ConnectorModeEndfaceIL(max) (dB)RL(min) (dB)IL(max) (dB)RL(min) (dB)
MPO/MTPSM12F/APC≤0.70≥60≤0.35≥60
24F/APC≤0.75≥60≤0.35≥60
48F/APC≤0.75≥60
MM12F/PC≤0.50≥20≤0.35≥20
24F/PC≤0.50≥20≤0.35≥20
48F/PC≤0.50≥20
LC/SC/FC/STSMAPC≤0.30≥60≤0.10≥60
UPC≤0.20≥50≤0.10≥50
MMPC≤0.20≥30≤0.10≥30

Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.Mechanical Properties
ItemCriteriaConformance
△IL After 50 MatingsMPO/MTP≤0.3dBGR-1435
△IL After 500 MatingsLC/SC/FC/ST≤0.2dBIEC 61300-2-2
Min Bend Radius (Dynamic)20*OD (Cable Diameter)
Min Bend Radius (Static )15*OD (Cable Diameter)
Environment Conditions
ItemCriteriaConformance
Operation Temperature-40~60°CIEC 61753-1
Storage Temperature-45~85°C

Product Tags:

Female MTP Trunk Cable

Female Mpo Fiber Patch Cord

24f Male Female Om3 Fanout Breakout Harnesses Cable MPO To LC Patch Cord

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shenzhen CY COM Product Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Explore more MPO Products products from this supplier

Find Similar Products By Category:

Telecommunications

Hot Searches:

Shenzhen CY COM Product Co., Ltd

24f Male Female Om3 Fanout Breakout Harnesses Cable MPO To LC Patch Cord

24f Male Female Om3 Fanout Breakout Harnesses Cable MPO To LC Patch Cord

24f Male Female Om3 Fanout Breakout Harnesses Cable MPO To LC Patch Cord

Female MTP Trunk Cable

Female Mpo Fiber Patch Cord

24f Male Female Om3 Fanout Breakout Harnesses Cable MPO To LC Patch Cord

Company Profile

Partaners:

Organization Structure:

Company certificate

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20
LC/SC/FC/ST	SM	APC	≤0.30	≥60	≤0.10	≥60
	SM	UPC	≤0.20	≥50	≤0.10	≥50
	MM	PC	≤0.20	≥30	≤0.10	≥30

Mechanical Properties
Item		Criteria	Conformance
△IL After 50 Matings	MPO/MTP	≤0.3dB	GR-1435
△IL After 500 Matings	LC/SC/FC/ST	≤0.2dB	IEC 61300-2-2
Min Bend Radius (Dynamic)		20*OD (Cable Diameter)
Min Bend Radius (Static )		15*OD (Cable Diameter)

Environment Conditions
Item	Criteria	Conformance
Operation Temperature	-40~60°C	IEC 61753-1
Storage Temperature	-45~85°C	IEC 61753-1
