OM3 QSFP+ To QSFP + AOC Active Optical Cable 12.3 GHz

Ask Lasest Price
Brand Name :	CY COM
Model Number :	40Gbps QSFP AOC
Certification :	ISO9001:2015 CE RoHS FCC
Price :	US $10 - 20/ Piece
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50K
Delivery Time :	7-8 working days

Add to Cart

Product Details
Company Profile

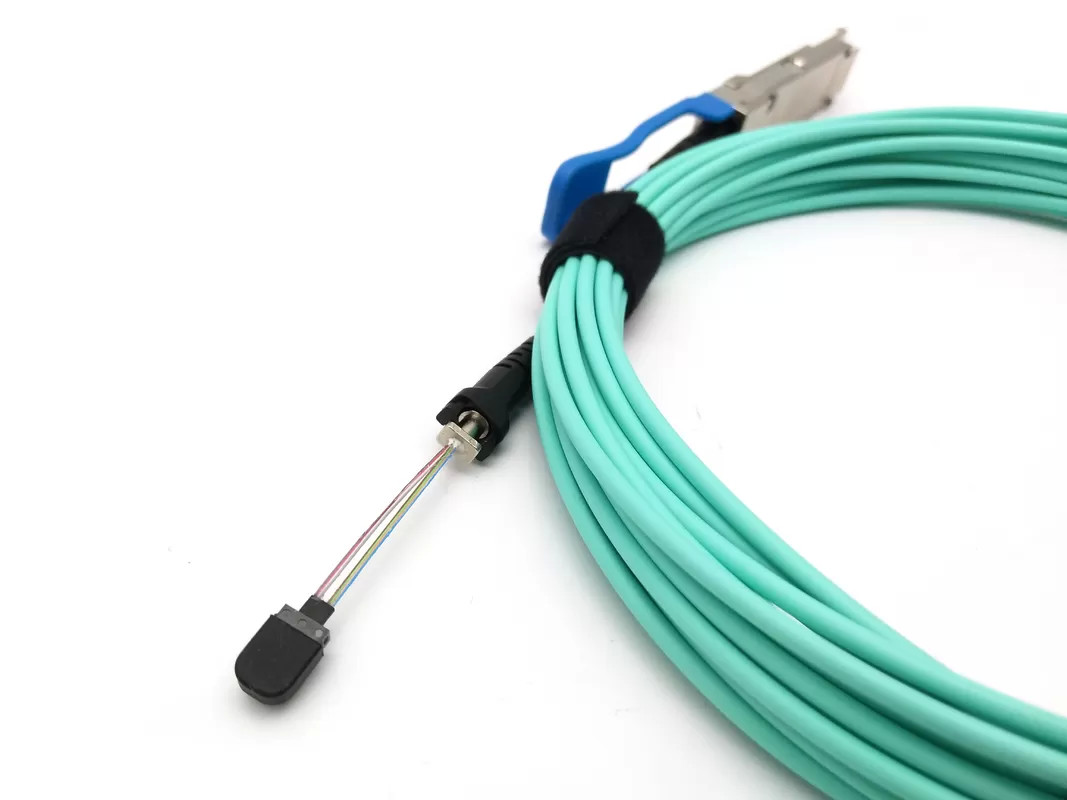

OM3 QSFP+ To QSFP + AOC Active Optical Cable 12.3 GHz

12.3 GHz OM3 QSFP+ To QSFP+ AOC Active Optical Cable

AOC QSFP+ to QSFP+ OM3 Cable 40G QSFP+ Active optical cable

Product Description

QSFP + Active Optical Cables (AOCs) are active optical cables of the QSFP + interface. The module has a photoelectric conversion device inside to convert the electrical signals into optical signals and transmit distances up to 100 meters. The products have four channels, each channel transmission rate up to 10Gb / s, rate of 40Gb / s. Its low power consumption, low bit error rate, easy to manage, high-performance features are widely used in short distance high-speed connection such as 10 Gigabit Ethernet, 10 Gigabit switches, 10 Gigabit servers, supercomputers, cloud computing and cloud storage networks.

Features

• Transmission data rate up to 10.3Gbit/s per channel

• compliant with QSFP + MSA &SFF-8436 standard

• Hot pluggable electrical interface

• Differential AC-coupled high speed data interface

• Multi-mode optical fibre cable of up to 100m

• 4 channels 850nm VCSEL array

• 4 channels PIN photo detector array

• Supports serial ID functionality thru EEPROM

• Management Interface and digital diagnostic

• Low power consumption

• 3.3V power supply voltage

• Operating case temperature 0°C to +70°C

• RoHS compliant

Application

• 10Gbs ~ 40Gbs of Ethernet

• data storage and communications industry

• Server and data storage devices

• Switch / router / HBA and so on

• Data center and in-rack connections

Optical characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

	Unit	Values
Operating Reach	m	10K
Transmit
Center wavelength (range)	nm	1260 -1355
Side Mode Suppression Ratio (min)	dB	30
Launched power
– maximum	dBm	+0.5
– minimum	dBm	-8.2 Notes1
- OMA	dBm	-5.2
- OMA-TDP (min)	dBm	-6.2
Transmitter and dispersion penalty	dB	0 Notes4
Average launch power of OFF transmitter (max)	dBm	-30
Extinction ratio (min)	dB	3.5 Notes2
RIN12 OMA (max)	dB/Hz	-128
Optical Return Loss Tolerance (min)	dB	12
Receiver
Center wavelength (range)	nm	1260-1355
Receive overload (max) in average power1	dBm	0.5
Receive sensitivity (min) in average power1	dBm	-14.4 Notes3
Receiver sensitivity (max) in OMA (footnote 2)	dBm	-12.6 Notes3
Receiver Reflectance (max)	dB	-12
Stressed receiver sensitivity (max) in OMA2	dBm	-10.3
Vertical eye closure penalty (min)3	dB	2.2
Stressed eye jitter (min)2	UIp-p	0.7
Receive electrical 3dB upper cutoff frequency (max)	GHz	12.3
Receiver power (damage, Max)	dBm	1.5

OM3 QSFP+ To QSFP + AOC Active Optical Cable 12.3 GHz
