    LC DX Mutilmode OM4 OM3 Patch Cord Customized Breakout

    Ask Lasest Price
    Brand Name : CY COM
    Model Number : MPO-12 Uniboot LC
    Certification : ISO9001:2015 , RoHS
    Payment Terms : L/C,T/T,Western Union payments for offline orders.
    Supply Ability : 1 million connector / month
    Delivery Time : 3-15 days
    • Product Details
    • Company Profile

    LC DX Mutilmode OM4 OM3 Patch Cord Customized Breakout

    LC DX Mutilmode OM4 OM3 Breakout Patch Cord

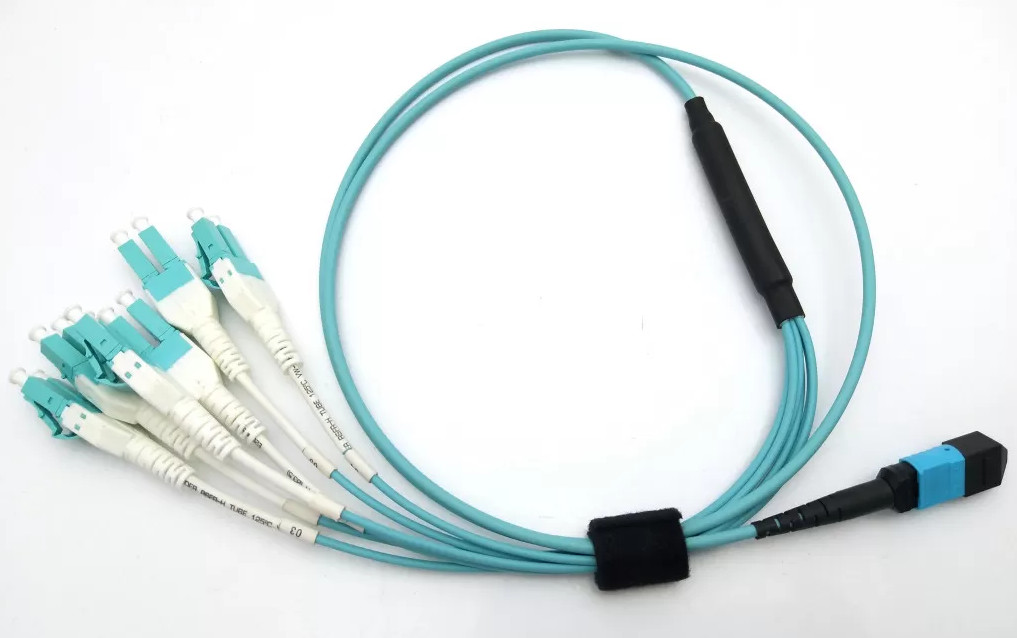

    12 core MTP MPO to 6 Uniboot LC-DX Mutilmode OM3 Breakout Patch Cord Aqua Cable
    Description:
    4cores/8cores/12cores/24cores breakout fan-out patch cords, MPO/MTP-SC OM1/OM2/OM3. Key up, Key down types. Short length(<=35cm) used inside of module box.
    * Push-pull latching
    * Easy assembly, no crimp tool needed
    * Alignment achieved with high precision guide pins
    * Designed for low loss and standard loss SM and MM applications
    * Ruggedized round cable, oval cable and bare ribbon options available
    * Color coeed housings available to differentiate fiber type, polish type and/or connector grade


    Features:
    Low insertion loss, high return loss
    MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
    Economical solution for mass-termination of fiber
    Designed for low loss and standard loss SM and MM applications
    Ruggedized round cable, oval cable and bare ribbon options available
    Color coded housings available to differentiate fiber type, polish type and/or connector grade

    Good in repeatability and exchangeability


    Application:
    MPO/MTP is the high density of optical fiber pre-connect system which is generally use in three areas.

    · The data center application with high density environment
    · The optical fiber to the building
    · The internal connector application in fiber equipment such as Splitter,

    · 40G / 100G SFP and SFP

    Specification:

    ParametersValue
    Typical Insertion Loss(Elite)≤0.35 dB
    Typical Insertion Loss (Standard)≤0.70 dB
    Max Insertion Loss≤0.70 dB
    Return LossSM≥50,APC≥60,MM≥20
    Durability(500 Mating Times)IL≤0.75dB
    Operating Temperature-20- +70
    Storage Temperature-20- +70


    LC DX Mutilmode OM4 OM3 Patch Cord Customized BreakoutLC DX Mutilmode OM4 OM3 Patch Cord Customized BreakoutLC DX Mutilmode OM4 OM3 Patch Cord Customized BreakoutLC DX Mutilmode OM4 OM3 Patch Cord Customized Breakout
