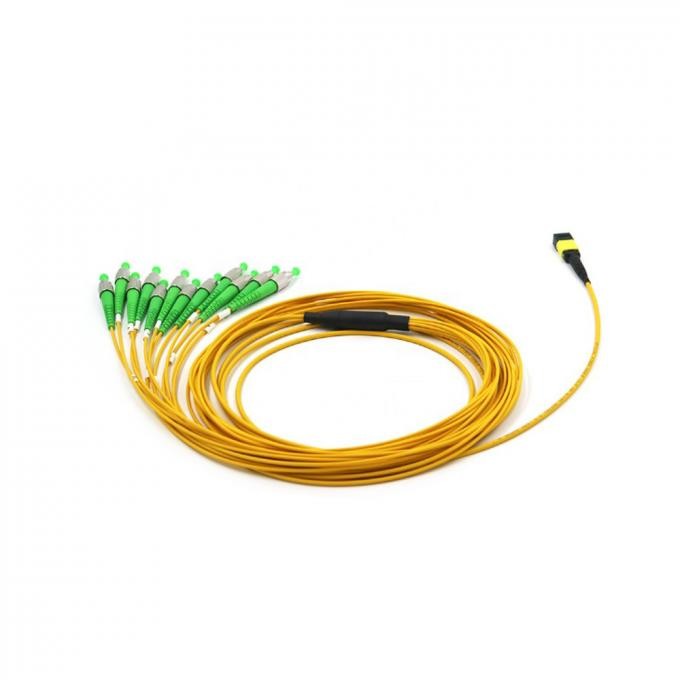

Single Mode SM 12 Core FC APC Simplex MPO MTP
Single mode SM Breakout Patch Cord MPO-12 core FC APC Simplex Green
connector
Description:
MTP and MPO multimode cross over fiber optic cables. Cross over MPO
cable is available configurations are Female to female or a male to
male and male to female.
Cable options include, Riser Rated Jacket, Plenum rated jacket,
LSZH. Round cable, ribbon cable, or bare ribbon cable.
The male version has MTP pins. Available in 4,8,12, 24, and 48
fiber array configurations.
We use USConec MTP fiber optic connectors for all of our MTP and
MPO terminations so that the highest performance is accomplished.
Many additional options and combinations are available. All multi
fiber optic cables are customizable.
The MTP multimode connector is a mtp flat polished connector. There
is a low loss version for multimode 50/125 at the customers
request.
The MPO/MTP Cable has a Aqua color jacket for cable recognition.
MTP Connector is Female or Male Elite Usconec Connector Yellow
housing,Cable is 12 fiber Singlemode Mini Core cable,Round Fan-out
Kits,Breakout 2.0mm.Inside fiber color from 1~12 is
Blue,Orange,Green,Brown,Slate,White,Red,Black,Yellow,Violet,Rose
,Aqua.
Features:
MTP / MPO Push-Pull Connectors for Quick Fiber Optic connections
Push/Pull tab connectors offer maximum accessibility in high
density installations; install / remove with one hand
12 times the density of SC style connectors
No need for long fan-out cables or individual long duplex cable
runs
High Density design cuts down on installation costs
50/125 OM3 Rated Multimode Fiber, 850nm
Plenum rated jacket
Unique cable ID label for Quality Control and Traceability
Each cable 100% tested for low insertion loss and back reflection
Test data supplied with each cable
Custom lengths available
MTP/MPO Specifications:
| Type | Single Mode | Single Mode | Multi Mode |
| (APC Polish) | (UPC Polish) | (PC Polish) |
| Fiber Count | 8,12,24 etc. | 8,12,24 etc. | 8,12,24 etc. |
| Fiber Type | G652D,G657A1 etc. | G652D,G657A1 etc. | OM1,OM2,OM3 etc. |
| Maximum Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
| Low Loss | Low Loss | Low Loss |
| ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.60dB |
| Return Loss | ≥60 dB | ≥60 dB | NA |
| Durability | ≥500 times | ≥500 times | ≥500 times |
| Operating Temperature | -40℃ ~ +80℃ | -40℃ ~ +80℃ | -40℃ ~ +80℃ |
| Test Wavelength | 1310nm | 1310nm | 1310nm |
