    SC UPC 0.9mm OM2 Om3 Fiber Optic Cable Multimode

    Ask Lasest Price
    Brand Name : CY COM
    Model Number : US CONEC /SENKO / Customized
    Certification : ISO9001:2015 , RoHS
    Payment Terms : L/C,T/T,Western Union payments for offline orders.
    Supply Ability : 1 million connector / month
    Delivery Time : 3-15 days
    • Product Details
    • Company Profile

    SC UPC 0.9mm OM2 Om3 Fiber Optic Cable Multimode

    SC UPC 0.9mm OM2 Om3 Multimode Fiber Optic Cable

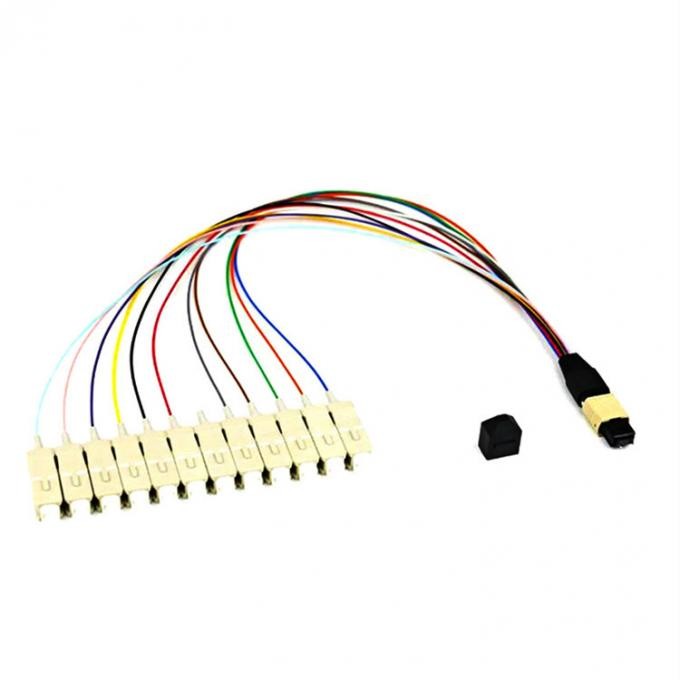

    MPO-12 SC UPC 0.9mm Mutil mode cable MPO OM3 Fan-out MM Patch Cord 12 Fiber corlor


    Description:

    MPO/MTP multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions. The spring - loaded push/pull locking mechanism of the MPO is easy to handle while guaranteeing the secure mating of the connectors. High- precision guiding pins ensure the exact adjustment of the ferrule. t offered in fiber types in standard 8, 12, 24 or 48 cores versions using a compact , and with multimode and singlemode fibres secure transition between MPO/MTP and LC or SC connections.


    Features:

    Push-pull latching
    Easy assembly, no crimp tool needed
    Alignment achieved with high precision guide pins
    Designed for low loss and standard loss SM and MM applications
    Ruggedized round cable, oval cable and bare ribbon options available
    Color coeed housings available to differentiate fiber type, polish type and/or
    connector grade



    Specification Single Mode Multi mode Insertion Loss 0.50dB Typical (all fibers)0.30dB Typical (all fibers)
    0.6dB Maximum (Single fiber) 0.50dB Maximum (Single fiber)
    Return Loss ≥60dB (8° Angle Polish) >20dB Durability
    <0.30dB change <0.20dB change` Operating Temperature -40°C~+80°C

    Specification
    Single Mode
    Multi mode
    Insertion Loss

    ≤0.35dB Typical

    ≤0.35dB Typical
    0.6dB Maximum
    0.50dB Maximum
    Return Loss
    ≥60dB (8° Angle Polish)
    >20dB
    Durability
    <0.30dB change
    <0.20dB change
    Operating Temperature
    -40°C~+80°C

    Application:

    CATV
    Active dvice termination
    Telecommunication networks
    Metro
    Local Area Networks(LANs)
    Data Processing networks
    Test Equipment
    Premise installations.
    Wide Area Networks(WANs)

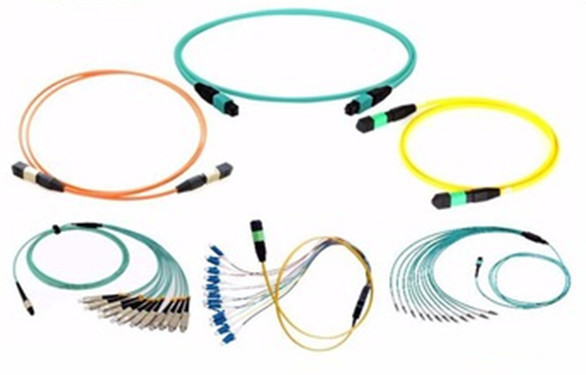

    Drawing and Product Picture:

    SC UPC 0.9mm OM2 Om3 Fiber Optic Cable Multimode


    SC UPC 0.9mm OM2 Om3 Fiber Optic Cable MultimodeSC UPC 0.9mm OM2 Om3 Fiber Optic Cable MultimodeSC UPC 0.9mm OM2 Om3 Fiber Optic Cable Multimode


    Quality SC UPC 0.9mm OM2 Om3 Fiber Optic Cable Multimode for sale
