    Multimode MM MPO MTP Trunk Cable OM1 OM2 OM4

    Ask Lasest Price
    Brand Name : CY COM
    Model Number : MPO-MPO
    Certification : ISO9001:2015 , RoHS
    Payment Terms : L/C,T/T,Western Union payments for offline orders.
    Supply Ability : 1 million connector / month
    Delivery Time : 3-15 days
    • Product Details
    • Company Profile

    Multimode MM MPO MTP Trunk Cable OM1 OM2 OM4

    OM1 OM2 OM4 Multimode MM MPO MTP Trunk Cable


    OM1 OM2 OM4 Mutilmode MM MPO MTP Trunk Cable

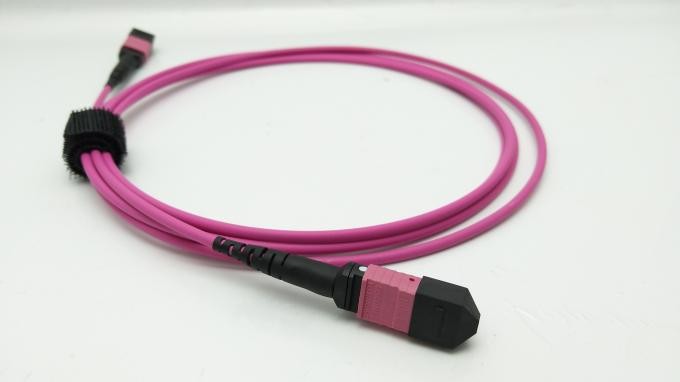

    12core MTP to MTP Truck Cable Mutilmode MM MPO Patch Cord Purple Violet Cable


    MPO/MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.0.35dB IL, MPO Female to MPO Female connector and 3.0mm bunch cable is designed for 40G/100G direct connection and high-density data center applications. Theoretically, trunk cables are available with 12, 24, 48 and 72 fibers. Their ends are terminated with the customer’s choice of 12-fiber or 24-fiber MTP/MPO connectors.


    Features:

    1. Insertion loss type available in Standard, Elite / Low Loss
    2. Fiber count available in 6, 8, 12, and 24
    3. MTP/MPO connector type available in Male and Female
    4. Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4)
    5. Fanout length available in 0.5m, 1m, etc.
    6. Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
    7. Single-fiber connector type available in LC, SC with APC or UPC polishing type
    8. Factory terminated & tested with guaranteed quality
    9. High density to dramatically save space


    Applications:

    Local Area Network (LAN)

    Data communication network

    Telecommunication optical transmission network

    Optical access network(OAN)

    Active device termination

    Fiber optics data transmission(FODT)

    Test Equipment

    CATV


    MTP / MPO Specification:

    TypeSingle ModeSingle ModeMulti Mode
    (APC Polish)(UPC Polish)(PC Polish)
    Fiber Count8,12,24 etc.8,12,24 etc.8,12,24 etc.
    Fiber TypeG652D,G657A1 etc.G652D,G657A1 etc.OM1,OM2,OM3 etc.
    Maximum Insertion LossEliteStandardEliteStandardEliteStandard
    Low LossLow LossLow Loss
    ≤0.35 dB≤0.75dB≤0.35 dB≤0.75dB≤0.35 dB≤0.60dB
    Return Loss≥60 dB≥60 dBNA
    Durability≥500 times≥500 times≥500 times
    Operating Temperature-40℃ ~ +80℃-40℃ ~ +80℃-40℃ ~ +80℃
    Test Wavelength1310nm1310nm1310nm
