    OM3 Elite Loss LSZH MPO MTP Patch Cord 850nm Multimode

    Ask Lasest Price
    Brand Name : CY COM
    Model Number : MPO-MPO
    Certification : ISO9001:2015 , RoHS
    Payment Terms : L/C,T/T,Western Union payments for offline orders.
    Supply Ability : 1 million connector / month
    Delivery Time : 3-15 days
    • Product Details
    • Company Profile

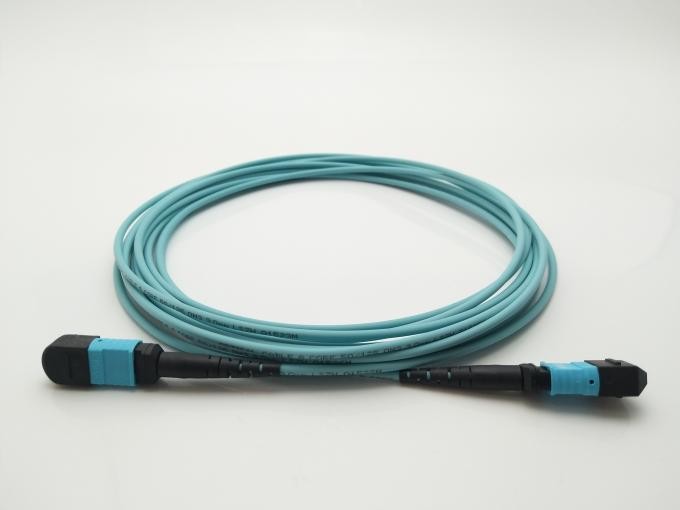

    OM3 Elite Loss LSZH MPO MTP Patch Cord 850nm Multimode

    850nm Mutilmode OM3 Elite Loss LSZH MPO MTP


    12core MPO to MPO Truck Cable Mutilmode OM3 MTP Patch Cord Aqua cable


    We supply MTP and MPO fiber optic cables. These are available in Female to female or a male to male and male to female configurations. The male version has MTP pins. These can be made with 12 fiber MTP connectors, 24 Fiber MTP connectors, 48 Fiber MTP connector variations. Many additional options and combinations are available. All multi fiber optic cables are customizable.


    Features:

    MTP/MPO standard compliant multifibre connector

    LC (SFF data center standard), SC discrete interface

    OS1/2, OM3, OM4 fibre grades (OM1 and OM2 available)

    12 and 24 fibre versions - 12 LC (Duplex) / SC (Simplex) optical parts

    Polarity A (standard), B or C

    Factory terminated and tested

    High performance zirconia sleeve adaptors


    Rapid deployment Factory terminated modular system saves installation and reconfiguration time during moves, adds and changes.


    MTP/MPO interface MTP/MPO components feature superior optical and mechanical properties.


    Optimized performance Low loss MTP/MPO Elite, discrete Premium connectors and OM4 fibre assures low insertion losses and power penalties in tight power budget, high-speed network environments.


    Reliability 100% tested - combination of high quality components and manufacturing quality control guarantees product to the highest standards.


    Performance of Assemblies MTP / MPO Termination:

    Type/PerformanceSinglemode(APC polish)Multimode(PC / Flat Polish)
    StandardElite Low LossStandardElite Low Loss
    Maximum Insertion Loss≤ 0.75dB≤ 0.35dB≤ 0.60dB≤ 0.35dB
    Return Loss≥ 50dBN/A
    Operating Temperature-20°C to +70°C
    Test Wavelength1310nm850nm

    Applications:

    Local Area Network (LAN)

    Data communication network

    Telecommunication optical transmission network

    Optical access network(OAN)

    Active device termination

    Fiber optics data transmission(FODT)

    Test Equipment

    CATV


    Production Equipment :


    OM3 Elite Loss LSZH MPO MTP Patch Cord 850nm MultimodeOM3 Elite Loss LSZH MPO MTP Patch Cord 850nm Multimode
