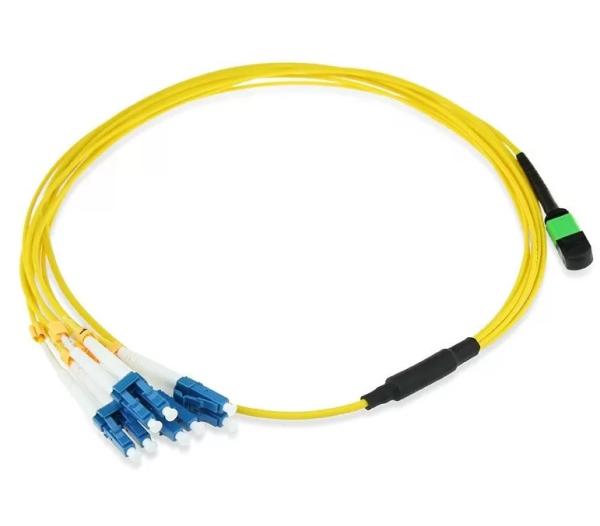

Singlemode Breakout LC DX 2.0mm Mtp Fiber Cable
Singlemode Breakout Patch Cord MPO to 4 LC-DX 2.0mm Fanout Trunk
Yellow Cable,Elite loss
Description:
MPO / MTP fiber patch cords in high-density data centers, fiber to
the building (FTTB) ,optical splitter /40G/100G SFP / SFP + optical
transceiver device to flexible connection between different
modules. equipment and systems . so that the optical signal can
transmit the desired channel, to achieve and complete a
predetermined or desired.purpose and requirements.
MPO Fiber Patch Cord are terminated with MPO connector on both end.
All of OMC’s MPO Connectors are from Taiwan, Japan etc. MPO patch
cord is a kind of high density cable assemblies.
Features:
Low insertion loss, high return loss
MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector
terminations and assemblies
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options
available
Color coded housings available to differentiate fiber type, polish
type and/or connector grade
Good in repeatability and exchangeability
Applications:
The Data Center application with high dense degree environment
The optical fiber to the building
The internal connector application in fiber equipment.
Specifications:
| Item | Technical Parameters |
| Connector Type | UPC | APC |
| Operation Temperature | -40°C ~ +80°C |
| Storage Temperature | -40°C ~ +85°C |
| Insertion Loss | Single-mode low ferrule: ≤0.35dB (typical value); Mutil-mode low ferrule: ≤0.35dB (typical value);
Single-mode standard ferrule: ≤0.6dB (typical value); Mutil-mode standard ferrule: ≤0.5dB (typical value); |
| Return Loss | Single-mode ferrule≥60dB | Mutil-mode ferrrule ≥20dB |
| The MPO end type | Male: with guide pin; Female: without guide pin |
| Fiber count | 4,8,12＆24 MT fiber |
| The other end of the connector type | MPO-female* , MPO-male , FC , SC , ST , MU , LC , E2000 |
| Fiber mode | Single-mode(G652,G655,G657), multi-mode= (50, 62.5, OM2, OM3, OM4) |
| Fiber cable type | 250um ribbon fiber,ribbon cable,Bundle fiber optic cable |
Polarity Types:
The three polarity methods Type A, Type B and Type C are used to
guarantee the right bi-directional allocation.
Please Note: When it is connected with two 40G QSFP+ transceivers,
please choose the Type B Cross as polarity; when it is connected
with other equipment such as MPO LGX Cassette, you can choose any
of the polarities as you need.
Drawing and Product Picture:
