FC-LC-SM-G652D-24 Core Branch Breakout Fiber Optic Patch Cord 24 Cores

Ask Lasest Price
Brand Name :	CY COM
Model Number :	FC-LC
Certification :	ISO9001:2015 , RoHS
Payment Terms :	L/C,T/T,Western Union payments for offline orders.
Supply Ability :	1 million connector / month
Delivery Time :	3-15 days

Add to Cart

Product Details
Company Profile

FC-LC-SM-G652D-24 Core Branch Breakout Fiber Optic Patch Cord 24 Cores

Fiber Patch Cord Price FC-LC-SM-G652D-24Core Branch Breakout Patch Cord 24 Cores Fiber Optic Patch Cord Shenzhen

iber patch cord price FC-LC-SM-G652D-24Core branch Breakout patch cord 24 cores fiber optic patch cord shenzhen

Fiber Optic Patch Cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".

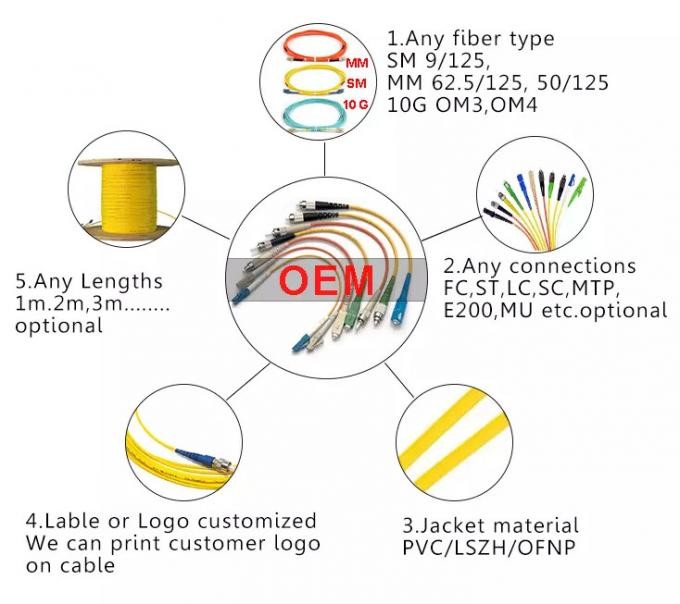

Support Ordering Parameters

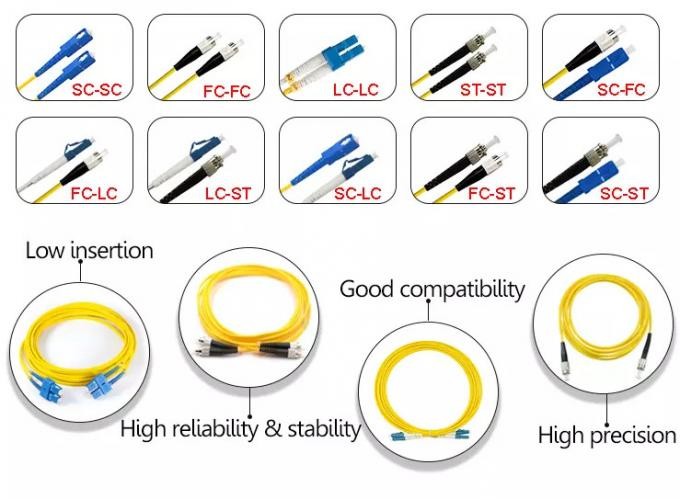

1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPC,APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
8) Patch cord/pigtail

Features
Low insertion loss and back reflection loss
Good echangeabilityGood Durability
High temperature stability
CE,ROHS,FCC
Superior quality standard PC/UPC/APC polishing

Applications

Cabling system, ODF
Optical fiber communication systems
Optical fiber data transmission
Telecom net
Optical fiber sensor
Optical fiber test equipment
Optical fiber communication system
FTTH, LAN,PON & Optical CATV

Specification

Item	Unit	LC/SC/FC/ST Fiber Patch Cord
Item	Unit	SM			MM
Fiber Diameter	UM	9/125			65.5/125	50/125
Polishing		PC	UPC	APC	PC	PC
Insertion Loss	dB	≤0.2	≤0.15	≤0.2	≤0.1	≤0.1
Return Loss	dB	≥55	≥50	≥60	≥35dB	≥35dB
Insert-pull Test	dB	≤0.2	≤0.2	≤0.3	≤0.15	≤0.15
Interchangeability	dB	≤0.1	≤0.1	≤0.15	≤0.1	≤0.1
Temperature Range	℃	-40~+80
Durability(1/Matings)	≥1000
Tensile Strength (N)	≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber	9/125um, 50/125um,62.5/125um,ect
Diameter	0.9mm 2.0mm, 3.0mm etc
Cores	Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc

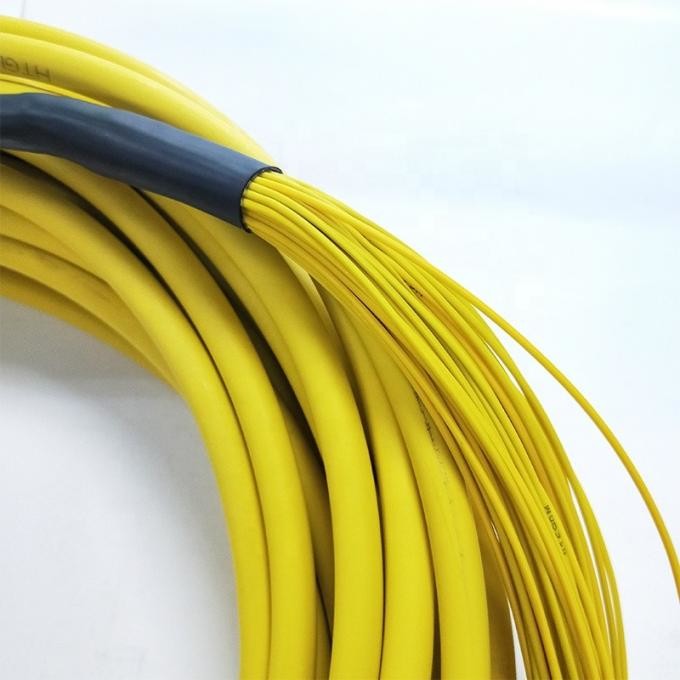

Product show

FC-LC-SM-G652D-24 Core Branch Breakout Fiber Optic Patch Cord 24 Cores
