9/125 Duplex SC/UPC-SC/UPC Fiber Optic Patch Cord Single Mode

High quality Single Mode 9/125 Duplex SC/UPC-SC/UPC Fiber Optic Patch Cord

Fiber Optic Patch cords are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration .Extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations.

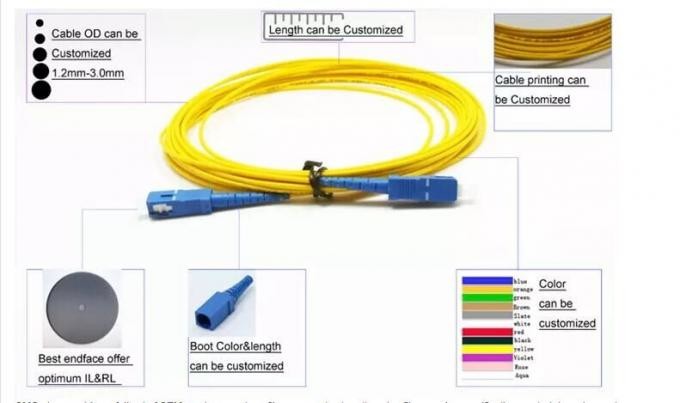

CUSTOM option

9/125 Duplex SC/UPC-SC/UPC Fiber Optic Patch Cord Single Mode

Physical Information

9/125 Duplex SC/UPC-SC/UPC Fiber Optic Patch Cord Single Mode

Product Description

9/125 Duplex SC/UPC-SC/UPC Fiber Optic Patch Cord Single Mode

More products

9/125 Duplex SC/UPC-SC/UPC Fiber Optic Patch Cord Single Mode

Specification

Mode	SM		MM
Polish	UPC	APC	APC
Insertion Loss	Typical ≤0.2dB Maximum ≤0.3dB		≤0.25dB
Return Loss	≥50dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strengh	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)

Ordering options

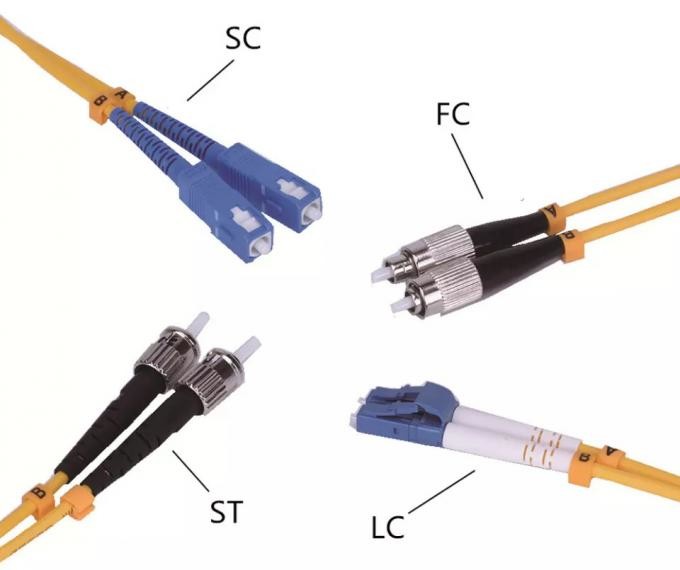

1) Connector type: FC, SC, LC, ST
2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized

7) Cable type: PVC, LSZH.

9/125 Duplex SC/UPC-SC/UPC Fiber Optic Patch Cord Single Mode
