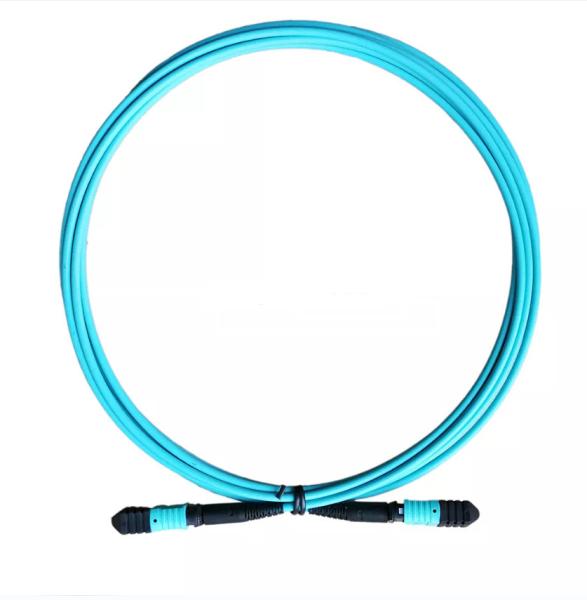

    12 Cores 3.0mm MPO Male OM3 Patch Cord UPC MM Low / Standard Loss

    Ask Lasest Price
    Brand Name : CY COM
    Model Number : MPO-MPO
    Certification : ISO9001:2015 , RoHS
    Payment Terms : L/C,T/T,Western Union payments for offline orders.
    Supply Ability : 1 million connector / month
    Delivery Time : 3-15 days
    • Product Details
    • Company Profile

    12 Cores 3.0mm MPO Male OM3 Patch Cord UPC MM Low / Standard Loss

    12 Cores MPO Male OM3 3.0mm Patch Cord UPC MM Low/Standard Loss Patch Cord


    12core MTP to MTP Truck Cable Mutilmode MM MPO Patch Cord Purple Violet Cable


    MPO/MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.0.35dB IL, MPO Female to MPO Female connector and 3.0mm bunch cable is designed for 40G/100G direct connection and high-density data center applications. Theoretically, trunk cables are available with 12, 24 fibers. Their ends are terminated with the customer’s choice of 12-fiber or 24-fiber MTP/MPO connectors.


    Features:

    1. Insertion loss type available in Standard, Elite / Low Loss
    2. Fiber count available in 6, 8, 12, and 24
    3. MTP/MPO connector type available in Male and Female
    4. Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4)
    5. Fanout length available in 0.5m, 1m, etc.
    6. Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
    7. Single-fiber connector type available in LC, SC with APC or UPC polishing type
    8. Factory terminated & tested with guaranteed quality
    9. High density to dramatically save space


    Applications:

    Local Area Network (LAN)

    Data communication network

    Telecommunication optical transmission network

    Optical access network(OAN)

    Active device termination

    Fiber optics data transmission(FODT)

    Test Equipment

    CATV


    MTP / MPO Specification:

    TypeSingle ModeSingle ModeMulti Mode
    (APC Polish)(UPC Polish)(PC Polish)
    Fiber Count8,12,24 etc.8,12,24 etc.8,12,24 etc.
    Fiber TypeG652D,G657A1 etc.G652D,G657A1 etc.OM1,OM2,OM3 etc.
    Maximum Insertion LossEliteStandardEliteStandardEliteStandard
    Low LossLow LossLow Loss
    ≤0.35 dB≤0.75dB≤0.35 dB≤0.75dB≤0.35 dB≤0.60dB
    Return Loss≥60 dB≥60 dBNA
    Durability≥500 times≥500 times≥500 times
    Operating Temperature-40℃ ~ +80℃-40℃ ~ +80℃-40℃ ~ +80℃
    Test Wavelength1310nm1310nm1310nm

    Production Equipment :
