OM5 Cable SC LC MPO MTP Optical Fiber Patch Cord

Ask Lasest Price
Brand Name :	CY COM
Model Number :	MPO
Certification :	ROHS
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	1 million connector / month
Delivery Time :	3-7days

Add to Cart

Product Details
Company Profile

Fiber Optic OM3/OM4/OM5 Cable SC LC MPO MTP Optical Fiber Patch Cord

Fiber MPO/MTP Female to LC Uniboot Breakout Cable With Pull Tab OM1/OM2/OM3/OM4/OM5 Multimode FiberMania Brand

Product Description

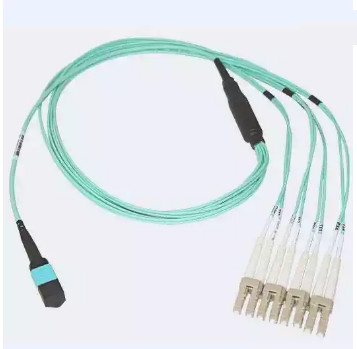

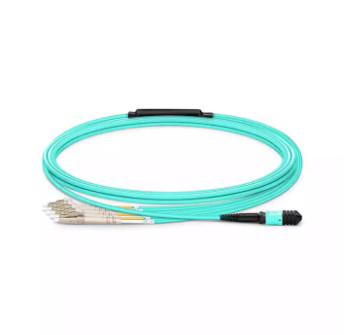

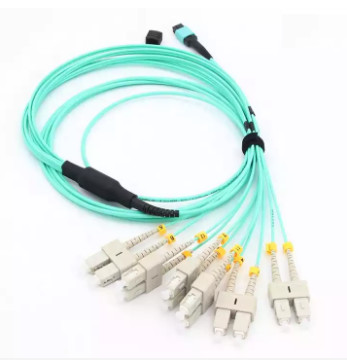

MTP/MPO Cable Assemblies, commonly recognized as MTP® Breakout Fiber as well, are primarily utilized for data distribution patch panels, including plenum applications. FiberMania Cable supplies MTP® breakout cables in single-mode and multimode, employing 12, 24, 48, and 72 fibers. The MTP® fiber cable splits one 12 strand MTP® fiber optic cable into 12 individual SC cables. Fan-out style MTP® cable is available in both male and female styles, varying in length and by the diameter of the fan tube.

Features:
1. Push & pull tabs
2. High density - ruggedized fan out allows for direct connection between the backbone and active equipment eliminating rack space usage
3. Rapid deployment - factory terminated modular system saves installation time and labor cost
4. Reliability - 100% tested, the combination of high-quality components and manufacturing quality control guarantees product to the highest standards

Applications:
1. Datacenter
2. Telecommunication networks
3. Broadband network
4. LAN, WAN, SAN

Specification:

Connector	MPO/MTP(Male/Female)			LC/SC/FC/ST
Fiber Mode	SM(OS2)		MM(OM1/OM2/ OM3/OM4/OM5)	SM(OS2)		MM(OM1/OM2/ OM3/OM4/OM5)
Polishing Type	PC	APC	PC	UPC	APC	UPC
Insertion Loss	Typical≤0.30dB Max≤0.75dB Typical≤0.15dB (Elite) Max≤0.35dB (Elite)		Typical≤0.50dB Max≤0.25dB Typical≤0.10dB (Elite) Max≤0.35dB (Elite)	Typical≤0.15dB Max≤0.3dB		Typical≤0.15dB Max≤0.3dB
Return Loss	≥50dB ≥55dB(Elite)	≥60dB ≥65dB(Elite)	≥35dB	≥50dB	≥60dB	≥30dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Fiber Count	8/12/24/48/72/96/144 Fibers
Cable Jacket	PVC/OFNR/OFNP/LSZH
RoHS Compliancy Status	Compliant
