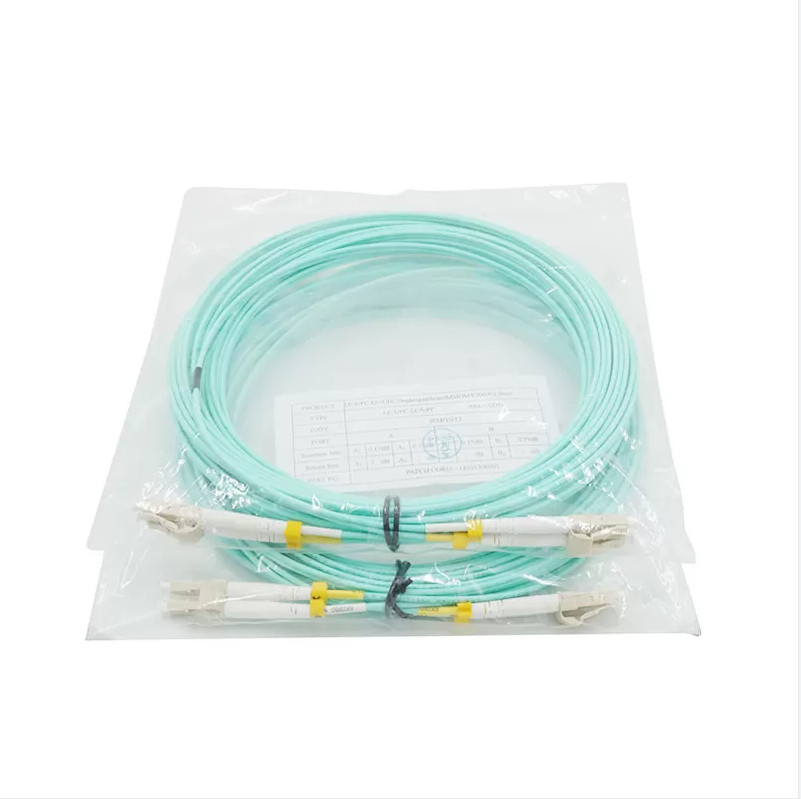

SC/FC/LC/ST/MU/MPO SX/DX fiber optic Jumper fiber optic patch cable

Product Description

Fiber Optic Patch Cord is also known as Fiber Optic Jumper. It is composed of a fiber optic cable terminated with different connectors on the ends. For the Fiber Patch Cables, there are two major application areas which are computer work station to outlet and fiber optic patch panels or optical cross connect distribution center.

We provide various types of fiber patch cords including single mode, multimode, multi core, and armored versions.

Features

Compliant with international standards such as ANSI, Bellcore, TIA/EIA, IEC, also accord with the industrial standards
of Telecom in China
Realize the active link of optic fiber transmission
Low insertion loss and high return loss
Excellent repeatability and interchangeability

Application
CATV
LAN and Access Network
Telecom, Gigabit Data Network
Testing and Medical equipment
Industry and Military application

Product Features

- High quality zirconia ferrules.
- Good repeatability and interchangeability.
- LC, SC, ST, FC, LSH, MTRJ, MU connectors are available.
- Flame-retardant, rugged and durable jacket.
- Printing helps clarify and recognize different cables.
- OS2, OM4, OM3, OM2, OM1, OM5 are available.
- Factory terminated and tested for insertion loss, return loss and end face.

Product Performance

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657)	MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials	LSZH/PVC
Connector Type	FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Loss(dB)	≤0.25dB	≤0.3dB
TIA/EIA-455-107	(PC/UPC/APC)	(PC/UPC)
Return Loss(dB)	≥50dB (PC/UPC)	≥40dB (PC/UPC)
TIA/EIA-455-107	≥60dB(APC)
Exchange-ability	≤0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patch cord
Operating Temperature(°C)	-10~+70
Storage Temperature(°C)	-40~+85
Package	1pieces/bag
