12F 24F OM3 OM4 Plenum MTP MPO Fiber Trunk Cable

Ask Lasest Price
Brand Name :	Senko / US CONEC / Furukawa Connector
Model Number :	Mpo mtp fiber optic pigtail
Certification :	ISO9001:2015
Price :	US $10 - 20/ Piece
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50K
Delivery Time :	3-5 working days

Add to Cart

Product Details
Company Profile

12F 24F OM3 OM4 Plenum MTP MPO Fiber Trunk Cable

12F/24F 40G-100G OM3 OM4 Plenum MTP MPO Fiber trunk cable patch cord

Product Description

MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. It is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.

MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost.

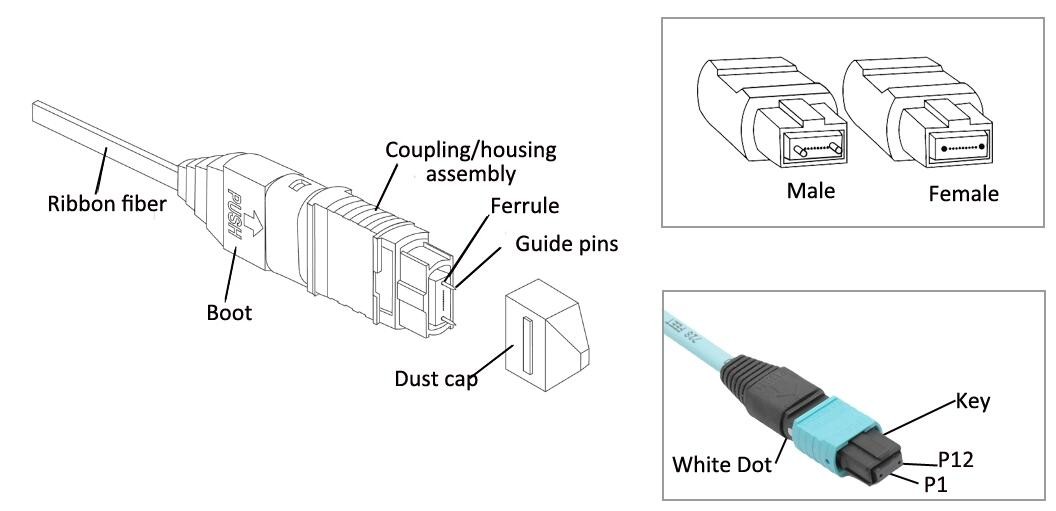

MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow.

These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.

MPO/MTP Trunk Cable

MPO/MTP Harnesses Cables

MPO/MTP Fan out 0.9mm Patch Cords

IP-Series MPO/MTP Assembly

High Density Patch Cords

MPO/MTP Loopback

MT Patch Cords

MPO/MTP Cassettes

MPO/MTP Fiber Optic Patch Panel

Product Specifications

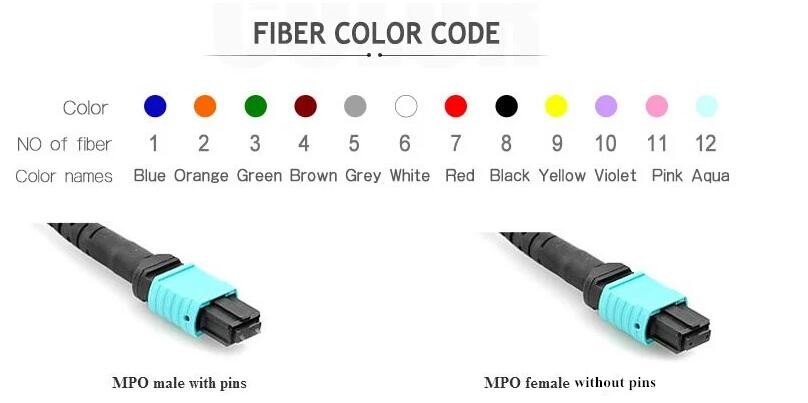

Connector A	MPO Female (pinless)	Connector B	MPO Female (pinless)
Fiber Mode	OM3 50/125 μm	Wavelength	850/1300 nm
40/100G Ethernet Distance	100 m at 850 nm	10G Ethernet Distance	300 m at 850 nm
Glass Fiber	Corning ClearCurve®	RoHS Compliancy Status	Compliant
Polish Type	UPC to UPC	Minimum Bend Radius	7.5 mm
Insertion Loss	0.35 dB Max. (0.15 dB Typ.)	Return Loss	≥ 20 dB
Attenuation at 850 nm	≤ 2.3 dB/km	Attenuation at 1300 nm	≤ 0.6 dB/km
Jacket OD	3.0 mm	Cable Jacket	LSZH
Installation Tensile Load	100 N	Long-Term Tensile Load	50 N
Storage Temperature	-40°C to 85°C	Operating Temperature	-10°C to 70°C

Features :

*Low insertion loss

*Low reture loss

*Varours Connector Types available

*Easy instalation

* Environmentally stable

Application:

*Fiber Optic telecommunications

*Lan(Local Area network)

*FTTH (Fiber to the home)

*CATV & CCTV

*High Speed transmission systems

*Fiber optic sensing

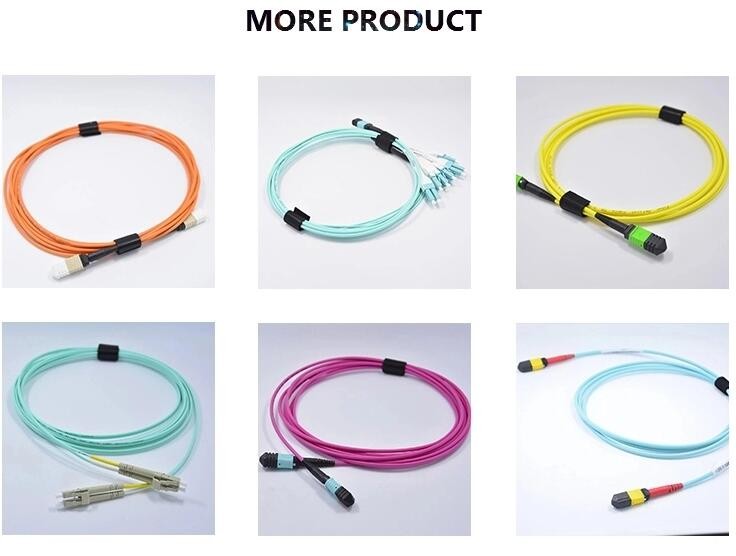

Detailed Images

12F 24F OM3 OM4 Plenum MTP MPO Fiber Trunk Cable
