OM3 MPO Harness Cable For 40G 100G Network Applications

Ask Lasest Price
Brand Name :	Senko / US CONEC / Furukawa Connector
Model Number :	Fiber Optic Cable
Certification :	ISO9001:2015
Price :	US $10 - 20/ Piece
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50K
Delivery Time :	3-5 working days

Add to Cart

Product Details
Company Profile

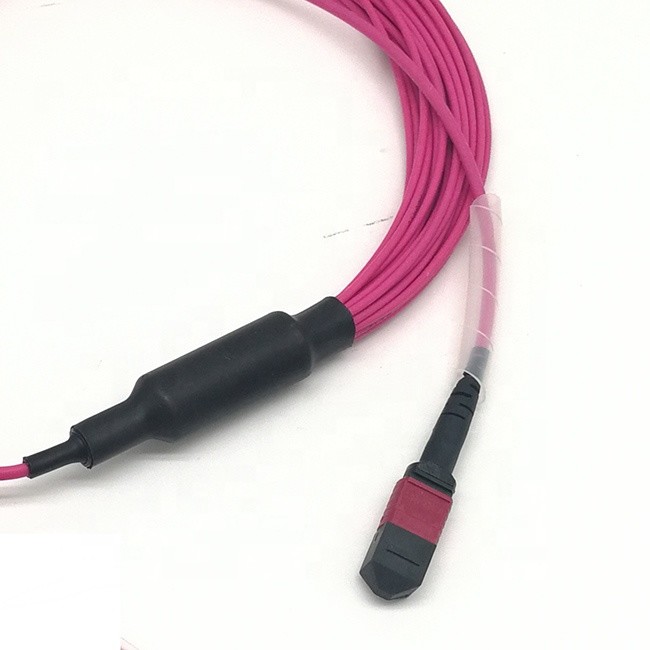

OM3 MPO Harness Cable For 40G 100G Network Applications

OM3 MPO Harness Cable Low Insertion loss Supports 40G and 100G
network applications Fiber Optic Cable

Description
12 fiber om4 mpo mtp connector ribbon cable fiber optic pigtail
MPO/MTP multicore cable assemblies facilitate rapid deployment of
high density backbone cabling in data centers and other high fiber
environments reducing network installation or reconfiguration time
and cost. They are used to interconnect cassettes, panels or
ruggedized MPO/MTP fan out, spanning MDA, HDA and EDA zones.
MPO/MTP assemblies are offered in fiber types in standard 12, 24or
48 core versions using a compact and rugged micro cable structure.
The compact cables optimize cableway use and improve airflow.
MPO/MTP are built with highest quality components. Standard MPO/MTP
as well low loss Elite versions are offered featuring low insertion
loss for demanding high speed networks where power budgets are
critical.
Features
1.Low Insertion loss
2.Low PDL
3.Excellent channel-to-channel uniformity
4.High return loss and Good repeatability
5.Wide wavelength range
6.Supports 40G and 100G network applications
7.Jacket material: 0.9mm cable LSZH, OFNR,
8.Supports up to 12F, 16F,24F,32F,
9.Breakout with LC SC ST FC etc


Product Parameter
Description
Specification
Conditions
Insertion Loss
MPO
SM: ≤ 0.7 dB
MM: ≤ 0.5 dB
SM
λ = 1310 / 1550 mm

MM
λ = 1300 / 850 mm
MTP
SM: ≤ 0.7 dB
MM: ≤ 0.5 dB
MPO/MTP Elite
SM: ≤ 0.35 dB
MM: ≤ 0.35 dB
Return Loss
SM APC: ≥ 60 dB MM PC: ≥ 30 dB
SM
λ = 1310 / 1550 mm
Standard conformance: GR-326,GR-1435.
Connector Type
Mode
Cable Type
Jacket Type
Cable Diameter (mm)
MPO / MTP Male
MPO / MTP Female
1.SM G652D
2.SM G657 A1
3.SM G657 A2
4.SM G657 B3
5.OM2 (50/125)
6.OM1 (62.5/125)
7.OM3 (50/125)
8.OM4 (50/125)9.OM5 (50/125)
8-Fiber
12-Fiber
16-Fiber
24-Fiber
32-Fiber
LSZH

OFNR
OFNP
Bare Ribbon
Ribbon 2.5*5.0
Round 3.0 / 3.5 /5.5 mm
Connector LC/SC/ST/FC
Single mode
Multimode
Polish
UPC
APC
PC
Insertion Loss
≤0.3dB
≤0.2dB
≤0.3dB
Return Loss
≥50dB
≥60dB
≥30dB
Interchangeability
≤0.2dB
Salt Spray
≤0.1dB
Repeatability
≤0.1dB (1000 times)
Vibration
≤0.2dB (550Hz 1.5mm)
Temperature
≤0.2dB (-40+85 sustain 100 hours)
Humidity
≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset
0μm ~ 50μm
Radius of Curvature
7mm ~ 25mm
Standards-Compliant
ROHS,IEC and GR-326
