Singlemode OM3 OM4 Fiber Optic MPO MTP Loopback

Ask Lasest Price
Brand Name :	US CONEC
Model Number :	MPO Loopback
Certification :	ISO9001:2015, ISO140001:2015, ROSH
Payment Terms :	T/T, Western Union
Supply Ability :	50K/Month
Delivery Time :	5-8 days

Add to Cart

Product Details
Company Profile

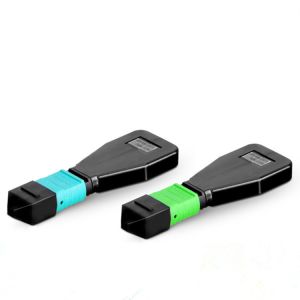

Singlemode OM3 OM4 Fiber Optic MPO MTP Loopback

Singlemode OM3 OM4 Fiber Optic MPO MTP Loopback

MPO LOOK BACK Fiber Optic MPO MTP Loopback 24 Cores 12 Core Singlemode OM3 OM4

Description:

MTP Loopback modules are used widely within testing environment especially within parallel optics 40/100G networks. Devices allow verification and testing of transceivers featuring MTP interface – 40GBASE-SR4 QSFP+ or 100GBASE-SR4 devices. Loopbacks are built to link Transmitter (TX) and Receivers (RX) positions of MTP transceivers interfaces. MTP loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MTP trunks/patch leads.

Features:

Ulitize MPO/MTP connectors

Rapid deployment

Factory terminated

100% test

High density cable

Optimized performance

Compliant to directive 200/95/EC(RoHS)

MPO connector complies with IEC-61754-7

Application:

40GbE QSFP+ Optical Testing
Research and Development
Manufacturing Test
Troubleshooting
Quality Control
Training

Connector Performance Specifications

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60

	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20

Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.

Mechanical Properties
Item		Criteria	Conformance
△IL After 50 Matings	MPO/MTP	≤0.3dB	GR-1435
△IL After 500 Matings	LC/SC/FC/ST	≤0.2dB	IEC 61300-2-2
Min Bend Radius (Dynamic)		20*OD (Cable Diameter)
Min Bend Radius (Static )		15*OD (Cable Diameter)

Environment Conditions
Item	Criteria	Conformance
Operation Temperature	-40~60°C	IEC 61753-1
Storage Temperature	-45~85°C

packing information:

Products Packing
Inner packing	1piece per plastic bag
Min order	1pieces
10 pieces weight	0.2-3kg
Outer packing	Carton box
