FTTH 96 Port Metal 19 Inch Fiber Optic Terminal Box

Ask Lasest Price
Brand Name :	CY COM
Certification :	ISO9001:2015 ;ROSH
Payment Terms :	Western Union, T/T
Supply Ability :	2K/Month
Delivery Time :	4-8 days

Add to Cart

Product Details
Company Profile

FTTH 96 Port Metal 19 Inch Fiber Optic Terminal Box

FTTH 96 Port Metal 19 Inch Fiber Optic Terminal Box

24 48 96 ports Patch panel Metal Fiber Optic Terminal Box 19 Rack Cabinet ODF Rack Mount

Introduction:

19Inch Fiber Optic Patch Panel is a standard distribution box which can be installed in the cabinet.There are 3 types available-1. Drawer Type 2. Rotary Type 3. Stick Type. It is mainly used in the CATV, telecommunication equipment room and network equipment room.

Features:

Standard size, light weight and reasonable structure

Compact design for space saving

Suitable for ribbon and single fiber

Various panel plate to fit different adapter interface(FC,SC,ST Adapter)

Front access panel design for easy operation

Suitable for 19’’ standard optic distribution Cabinets

Easy access with Telescopic rail pull-out system.

Providing protective connections for optical fibers and distribution pigtails.
Insulating fiber metal components from fiber-end shells and conveniently leading out grounding wires.
Providing spaces for placing fiber terminals and redundant fibers, thus making installation more convenient.
6-port or 12-port long adapter plate, FC, SC, ST, LC connector are applied.

Application:

Telecommunications subscriber loop

Fiber to the home (FTTH)

LAN/WAN

CATV/LAN/WAN

Telecommunications

Subscriber loop

Fiber to the home (FTTH)

Specification:

Type	Drawer
Dimension(mm)	4832801U/2U/3U/4U
Suitable adapter	FC/LC/SC/ST,APC/UPC/PC
Fiber Capacity(cores)	12,24,48,96,144(panel plate can be changed)
Material	Cold-roll steel sheet

Order information:

Panel port	Dimension(mm)	Max capacity(cores)	Remark
12 SC/FC/ST	4302501U	12	Cold rolled steel sheet,with electrostatic spraying,suitable for FC,SC,ST,LC adapters.
24 SC/FC/ST		24
24 LC		48
48 SC/FC/ST	4302502U	48

Product Show

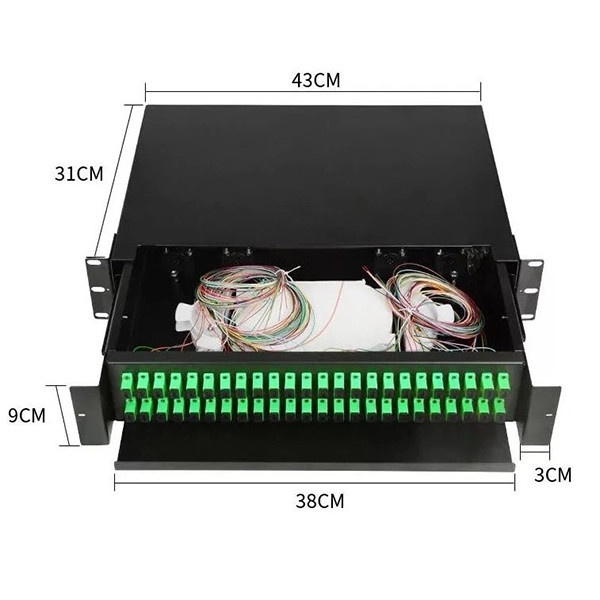

FTTH 96 Port Metal 19 Inch Fiber Optic Terminal Box
